Açıklama

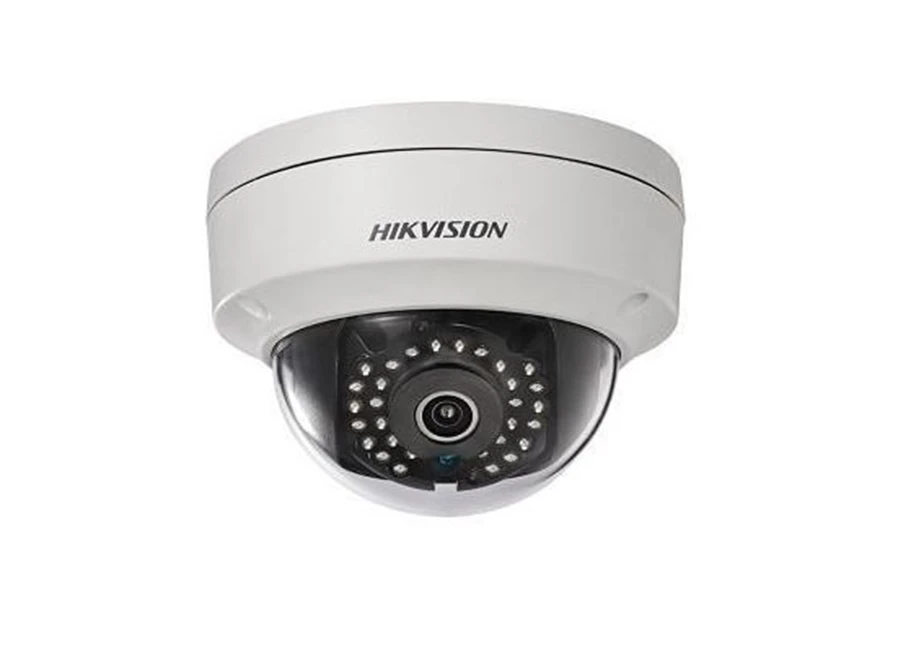

Hikvision DS 2CD2142FWD I IP Dome Kamera
Özellikler
- Up to 4 megapixel high resolution
- Full HD1080p video
- Dual video streams
- 2.8mm/4mm/6mm fixed lens
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- 3-axis adjustment
- DC12V & PoE
- Support H.264+
- Up to 30m IR range
- IP66 weather-proof protection
- IK08 vandal-proof protection
- -S: Audio/Alarm IO
- -W: Built-in Wi-Fi
- Mobile Monitoring via EZVIZ P2P or iVMS-4500
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Minimum Aydınlatma | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Objektif Hızı | 1/3 s to 1/10,000 s |
| Lens | 2.8mm, 4mm, 6mm @ F2.0 |
| Lens Mount | M12 |
| Ayarlanan Aralık | Motorized Pan: -90° ~ 90°, Tilt: 0° ~ 75° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG/H.264+ |
| H.264 Türü | Main Profile |
| Video bit rate | 32Kbps~8Mbps |
| Çift Akış | Yes |
| Image | |
| Max. Image Resolution | 2688 × 1520 |
| Çerçeve Hızı | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) |
| 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) | |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| ROI | Support |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protokoller | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering, Anonymous access | |
| System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | |
| Audio | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Alarm | 1x alarm I/O *only for –S models |
| Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Butonu | Yes |
| Wi-Fi Specification (-W) | |
| Kablosuz Standartlar | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Kanal Bant Genişliği | 20/40MHz Support |
| Modulation Mode | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM | |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Güç İletim | 11b: 17±1.5dBm @ 11Mbps |
| 11g: 14±1.5dBm @ 54Mbps | |
| 11n: 12.5±1.5dBm | |
| Alıcı Hassasiyeti | 11b: -90dBm @ 11Mbps (Typical) |
| 11g: -75dBm @ 54Mpbs (Typical) | |
| 11n: -74dBm (Typical) | |
| Transmission Rate | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Kablosuz Menzil | 50m(depend on environment) |
| General | |
| Operating Conditions | -10 °C ~ 40 °C (14 °F ~ 104 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| GÜç Tüketimi | Max. 5W |
| Impact Protection | IK08 Protection Level |
| Weather Proof | IP66 |
| IR Range | Up to 30m |
| Boyutlar | Φ111 × 82 (4.4” × 3.2”) |
| Ağırlık | 500g (1.1lbs) |
| NOT | "-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support |
| the 802.1X protocol. | |
Hikvision DS 2CD2142FWD I IP Dome Kamera Pdf Dosyası839.02 KB
Teknik Kısa
Çözünürlük : 4MP
Depolama : Var
