Açıklama

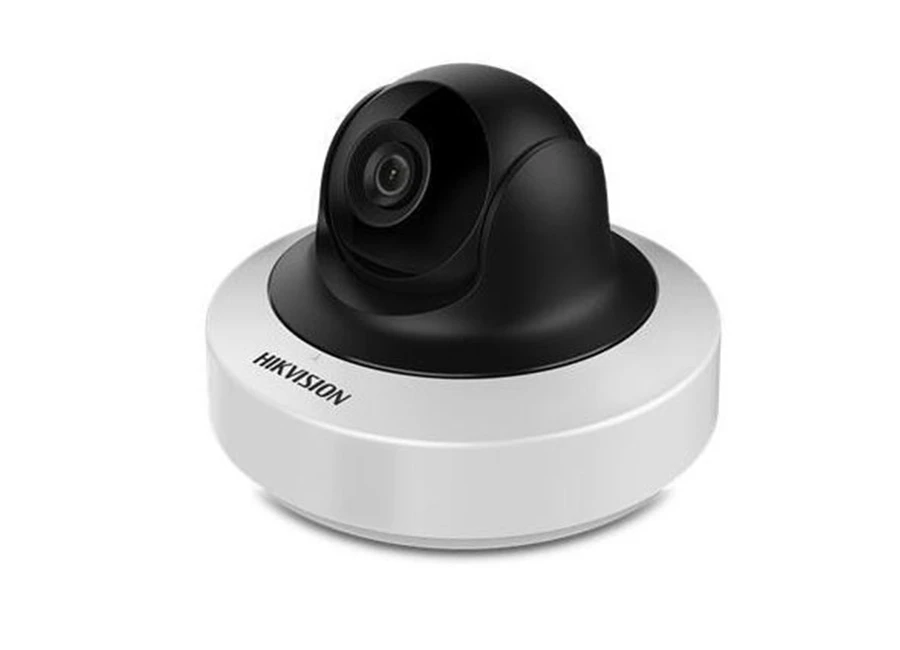

Hikvision DS 2CD2F12F ISZ IP Dome Kamera

Özellikler

1/3” Progressive Scan CMOS
Up to 1 megapixel resolution
Digital WDR
3D DNR
Support Wi-Fi, support WPS configuration with one touch (-W)
Two-way audio (-S)
Support pan and tilt
Support 128G on-board storage
12V DC±25% & PoE(802.3af Class3

Teknik Özellikler

Camera
Image Sensor	1/3" Progressive Scan CMOS
Minimum Aydınlatma	0.01Lux @(F1.2,AGC ON), 0.028Lux @ (F2.0, AGC ON), 0 Lux with IR
Slow shutter	Support
Objektif Hızı	1/3 s ~ 1/10,000 s
Lens	2.8mm~6mm @ F2.0
Lens Mount	M12
Ayarlanan Aralık	Pan:-90° - 90°, Tilt: 0° - 75°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	Digital WDR
Compression Standard
Video Compression	H.264/MJPEG
H.264 Türü	Main Profile
Video bit rate	32Kbps~16Mbps
Max. Image Resolution	1280 × 720
Çerçeve Hızı	50Hz: 25fps (1280 × 720)
Çerçeve Hızı	60Hz: 30fps (1280 × 720)
Görüntü İyileştirme	BLC/3D DNR/ROI
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Gündüz / Gece Anahtarı	Auto/Schedule/Triggered by Alarm In
Network
Network Storage	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protokoller	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
General Function	mask, Watermark, IP address filtering, Anonymous access
System Compatibility	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio:	1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
Communication Interface:	1 RJ45 10M / 100M Ethernet interface
Alarm:	1x alarm I/O *only for –S models
Dahili Depolama:	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu:	Yes
Wi-Fi Specification (-W)
Kablosuz Standartlar	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Kanal Bant Genişliği	20/40MHz Support
Modulation Mode	802.11b: CCK, QPSK, BPSK
Modulation Mode	802.11g/n: OFDM
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate	11b: 11Mbps
	11g: 54Mbps
	11n: up to 150Mbps
Kablosuz Menzil	50m(depend on environment)
General
Operating Conditions	-10 °C ~ 40 °C (14 °F ~ 104 °F)
Operating Conditions	Humidity 90% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
GÜç Tüketimi	Max. 5 W (Max. 7 W with IR cut filter on), Max. 9W with pan and tilt
IR Range	10 meters
Boyutlar	Φ119.93×87.08 mm (4.72’’×3.43’’)
Ağırlık	500g (1.1 lbs)
NOT	"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support
NOT	the 802.1X protocol.
