Açıklama

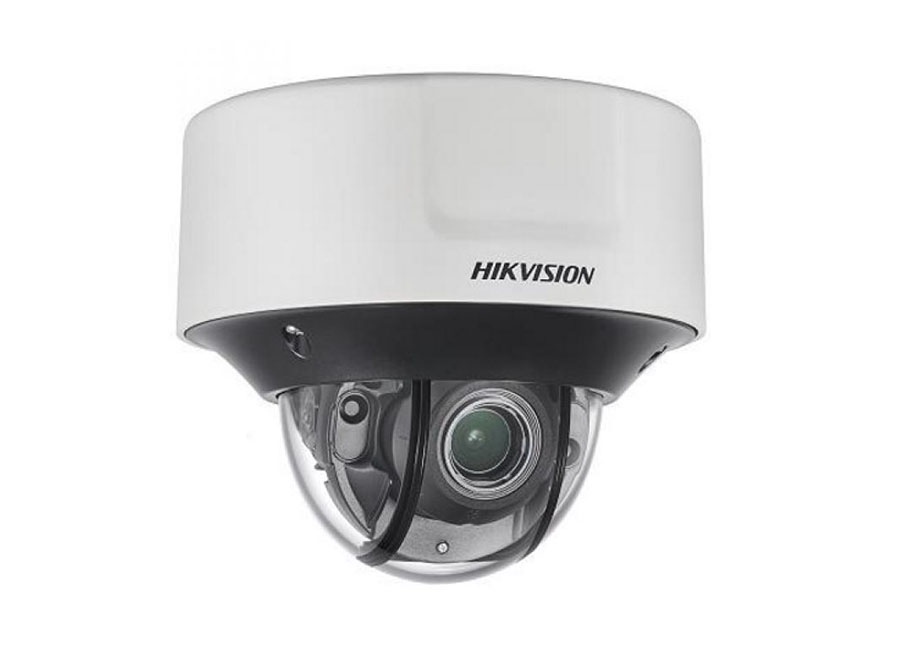

Hikvision DS 2CD5585G0 IZHS IP Dome Kamera

Özellikler

1/1.8”Progressive Scan CMOS
3840× 2160 @ 30fps
2.8-12 mm, 8-32mm motor-driven lens
Color 0.007 Lux @ (F1.2, AGC ON)
H.265, H.265+, H.264, H.264+
120dBWDR
3D DNR
2.8-12mm IR range up to 30 m; 8-32mm IR range up to 50m
Five streams and up to five custom streams
6 behavior analyses, 3exception detection, and face detection
Built-in microSD/SDHC/SDXC card slot,up to 256 GB
Alarm I/O
IP67, IK10

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color 0.007 Lux @ (F1.2, AGC ON)
Min. Illumination	0 Lux with IR
Shutter time	1 s to 1/100,000 s
Slow shutter	Yes
Lens	Motorized lens , 2.8 to 12 mm, 8 to 32 mm
Lens Mount	Integrated
Adjustment Range	Pan 0° to 355°, tilt 0° to 75°, rotate 0° to 355°
Day& Night	IR Cut Filter
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Focus	Auto, semi-auto, manual
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Dual Stream	Yes
Triple Streams	Yes
Max. Image Resolution	3840 × 2160
Frame Rate	50Hz 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1080 × 720)
Frame Rate	60Hz 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1080 × 720)
Sub Stream	50Hz 25fps (704 × 576, 640 × 480)
Sub Stream	60Hz 30fps (704 × 480, 640 × 480)
Third Stream	50Hz 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Third Stream	60Hz 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement	BLC, HLC, 3D DNR, Defog, EIS
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping	Yes
BLC	Support
HLC	Support
Smart Defog	Support
EIS	Support
3D DNR	Support
ROI	4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch	Auto/Schedule/Day/Night/Triggered by Alarm In
Network
Network Storage	Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Interface
Communication Interface	1 RJ45 10M/100M/1000M Ethernet port
Audio	1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
Alarm	1-ch input, 1-ch output (up to 24 VDC 1A or 110 VAC 500 mA)
Alarm Input	1
Alarm Output	1
Video Output	1Vp-p composite output (75 Ω/CVBS)
On-board storage	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button	Yes
Audio
Environment Noise Filtering	Support
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections	Scene change detection, audio exception detection, defocus detection
Recognition	Face Detection
Statistics	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
IR Range	Up to 30 m
Operation Condition	-IZS -30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing)
Operation Condition	-IZHS -40 °C to 65 °C (-40 °F to 149 °F), humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 20%, two-core terminal block
Power Supply	PoE (802.3at, class 3) 42.5 V to 57 V
Power Consumption	-IZS 12 VDC ± 20% 0.7 A, max 8.5 W, PoE (802.3at, class 3) 42.5 V to 57 V, 0.1 A to 0.2 A
Power Consumption	-IZHS 12 VDC ± 20% 1.1 A, max 14 W, PoE (802.3at, class 3) 42.5 V to 57 V, 0. 3 A to 0.4 A
Impact Protection	IK10
Weather Proof	IP67
Dimensions	Camera Φ162 × 140.3 mm (Φ6.4″ × 5.5″)
Dimensions	With package 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)
Weight	Camera 1450 g (3.20 lb.)
Weight	With package 1950 g (4.30 lb.)
