Açıklama

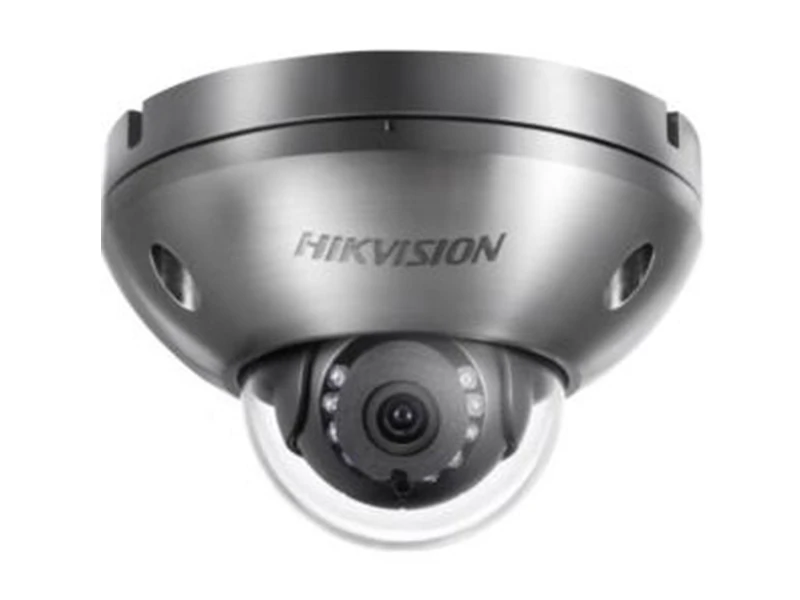

Hikvision DS 2XC6142FWD IS IP HD Dome Kamera

Özellikler

1/3’’ progressive scan CMOS
Up to 2560 × 1440 resolution
120dB WDR, 3D DNR
Anti-Corrosion Standard: WF-2, NEMA 4X, C5-M
Three video streams
6 behavior analyses, 2 exception detections, 1 recognition• Slow shutter
IR range: 10m

Teknik Özellikler

Camera
Image Sensor	1/3" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	0.01Lux @(F1.2, AGC ON) ,0 Lux with IR on
Min. Illumination	0.028 Lux @(F2.0, AGC ON), 0 Lux with IR on
Shutter time	Support
Slow shutter	1 s to 1/100,000 s
Lens	4/6mm optional
Lens Mount	M12
Auto Iris	DC drive
Adjustment Range	Tilt: 0° to 75°; Pan: -30° to 30°; Rotate: 0° to 360°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.265/H.264/MJPEG
H.264 code profile	Baseline profile/main profile/high profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbp(MP2L2)
Dual Stream	Yes
Triple Streams	Yes
Max. Image Resolution	2560 × 1440
Frame Rate	50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720, 528 × 384)
Frame Rate	60Hz: 24fps (2560 × 1440, 1920 × 1080, 1280 × 720, 528 × 384)
Sub Stream	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub Stream	60Hz: 24fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream	50Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Third Stream	60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)
Image Enhancement	BLC/3D DNR/Defog
Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
Target Cropping	Support
BLC	Support
3D DNR	Support
ROI	Support 4 customized region for each stream, and face dynamic tracking
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch	Auto/Schedule/Triggered by Alarm In
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
General Function	Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Alarm	Support
Alarm Input	1
Alarm Output	1
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections	Scene change detection, defocus detection
Recognition	Face Detection
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	5 V DC ± 10% /PoE (802.3af)
Power Consumption	Max. 5W
Weather Proof	IP67
IR Range	10 meters
Dimensions	Camera: Φ 113 × 77.3 mm (4.45″ × 3.04″)
Dimensions	Package: 257 × 167 ×145 mm (10.12″ × 6.57″ × 5.71″)
Weight	Camera: 1680 g (3.7 lb.)
