Açıklama

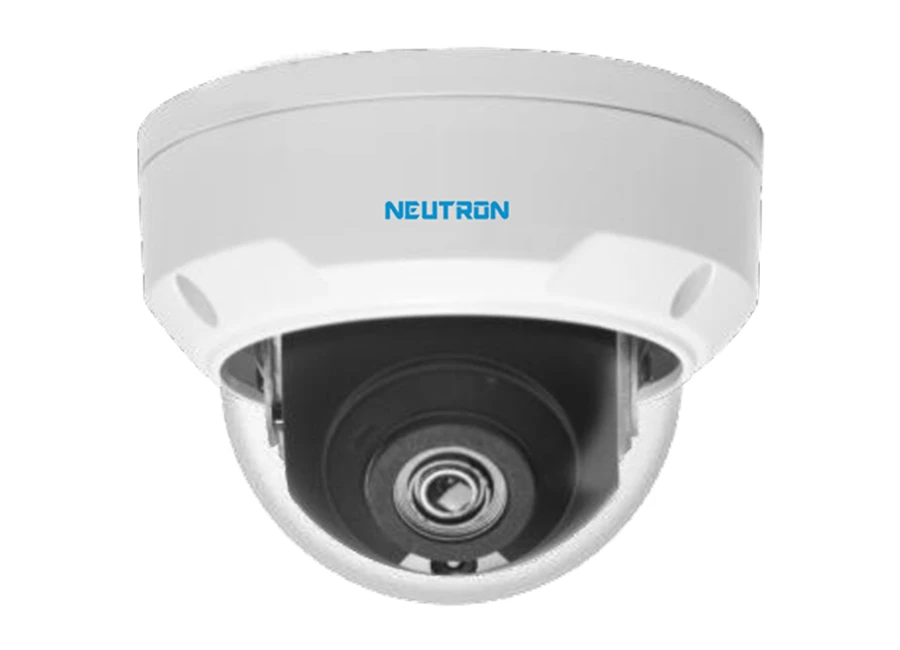

Neutron IPC322LR3 VSPF40 D IP Dome Kamera

	IPC322LR3-VSPF28-D		IPC322LR3-VSPF40-D
Camera
Sensor	1/2.7", progressive scan, 2.0 megapixel, CMOS
Lens	2.8mm@F2.0		4.0mm@F2.0
DORI Distance	Lens	Detect(m)	Observe(m)	Recognize(m)	Identify(m)
	2.8mm	46.7	18.7	9.3	4.7
	4.0mm	66.7	26.7	13.3	6.7
Angle of View (H)	112.7°		86.5°
Angle of View (V)	60.1°		44.1°
Angle of View (O)	146.5°		106.4°
Adjustment angle	Pan: °~360°		Tilt: °~75°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.02Lux ( F2.0, AGC ON)
	0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
WDR	DWDR
Video
Video Compression	Ultra 265,H.265,H.264,MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream:1080P (1920*1080): Max. 30 fps;
	Sub Stream:720P (1280*720): Max. 30 fps;
	Third Stream: CIF (352*288): Max. 30 fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration	ONVIF(Profile S, Profile T), API
Interface
Network	10/100M Base-TX Ethernet
General
Power	DC12V±25%, PoE (IEEE802.3 af)
	Power consumption: Max. 4.5W
Dimensions (Ø x H)	Φ109 x 81mm (Ø4.3” x 3.2”)
Weight	0.37kg (0.81lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10
