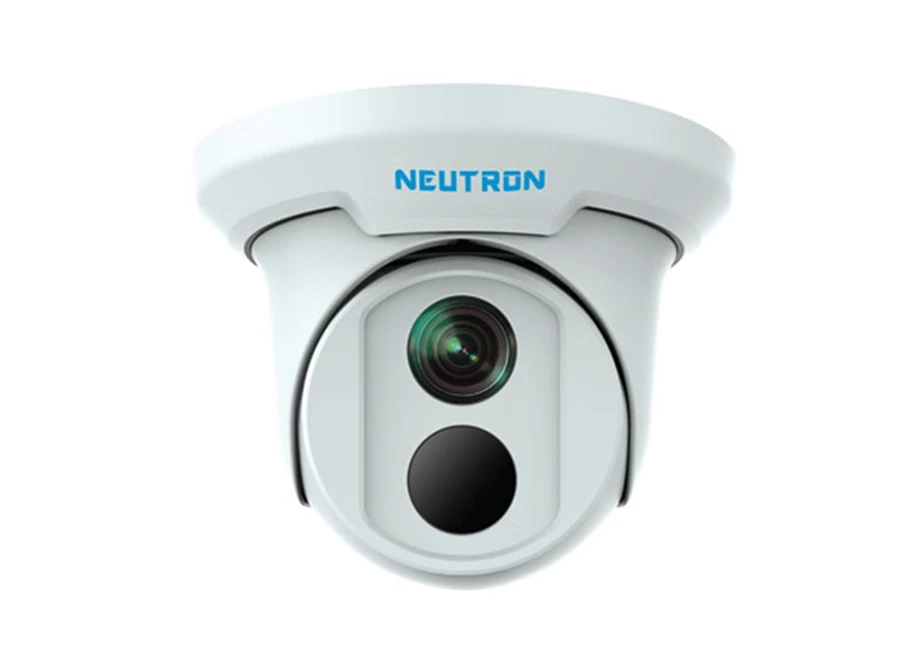

Neutron IPC3612ER3 PF40 C IP Dome Kamera

Teknik Özellikler

  IPC3612ER3-PF28-C IPC3612ER3-PF40-C
Camera
Sensor 1/2.7", progressive scan, 2.0 megapixel ,CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 42 16.8 8.4 4.2
4mm 60 24 12.1 6
Angle of view(H) 112.7° 86.5°
Angle of View (V) 60.1° 44.1°
Angle of View (O) 146.5° 106.4°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.005 Lux (F1.6, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR DWDR
Video
Video Compression Ultra 265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:2MP (1920×1080): Max. 30 fps
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1 (720×576): Max. 30 fps
HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection、Audio detection
Intelligent Identification Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration ONVIF(Profile S, Profile T), API
Interface
Network 1 RJ4510M/100M Base-TX Ethernet
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 4.5W
Dimensions (Ø x H) Φ126 x 94 mm (Ø5.0” x 3.7”)
Weight 0.33 kg (0.73lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection IP67

Teknik Kısa

Çözünürlük : 2MP (1080P)
