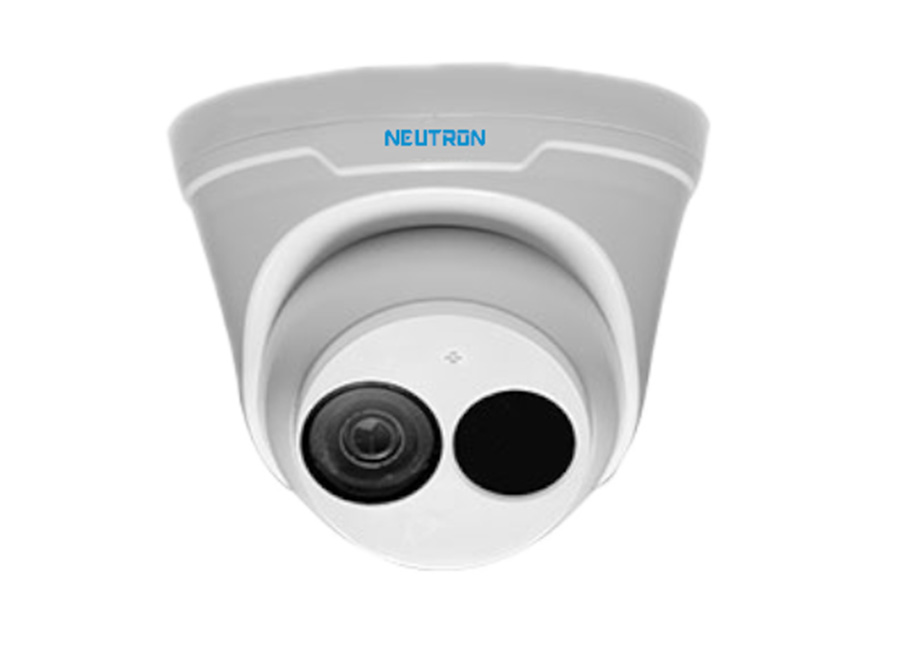

Neutron IPC3614LR3 PF40 D IP Dome Kamera

	IPC3614LR3-PF28-D		IPC3614LR3-PF40-D
Camera
Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0		4.0mm@F2.0
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	2.Ağu	42	16.8	8.4	4.2
	4.0	60	24.1	12.1	6.1
Angle of view (H)	104.4°		78.9°
Angle of View (V)	54.4°		39.6°
Angle of View (O)	135.7°		97.0°
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0° ~ 360°	Tilt: 0° ~ 90°		Rotate: 0° ~ 360°
Min. Illumination	Colour: 0.03Lux (F2.0, AGC ON)
	0Lux with IR
IR Range	Up to 30m (98ft) IR range
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
WDR	DWDR
Noise Reduction	2D/3D
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream: 4MP (2592*1520), Max 20fps;
	Sub Stream: 720P (1280*720), Max 20fps;
	Third Stream: D1 (720*576), Max 20fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration	ONVIF (Profile S, Profile T),API
Interface
Network	10/100M Base-TX Ethernet
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 4W
Dimensions (Ø x H)	Φ118 x 96mm (Φ4.6” x 3.8”)
Weight	0.35kg (0.77lb)
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
