Açıklama

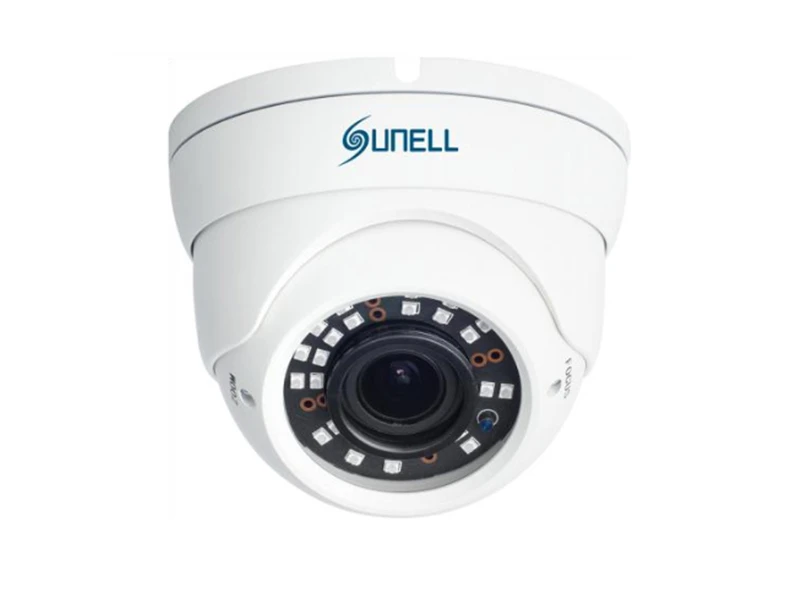

Sunell IPR54/04FVD(II) IP Dome Kamera
Özellikler
Teknik Özellikler
| CAMERA | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Min. illumination | Color :0.2Lux@(F1.2,AGC ON);B/W: 0 Lux@(IR LED ON) |
| Day & Night | ICR |
| Shutter Speed | 1/1-1/10000s |
| Auto Iris | Fixed |
| Wide Dynamic Range | dWDR |
| Digital Noise Reduction | 2D/3D |
| Lens | 3.6mm |
| FOV | 85° |
| IR LED | 18pcs |
| IR Range | Up to 20m |
| IMAGE | |
| Video Compression | H.264 High/Main/Baseline Profile, MJPEG |
| Bit Rate (CBR/VBR) | Main stream:500kb-12000kb ;Sub stream 100kb-6000kb |
| Audio Compression | G.711 ,RAW_PCM |
| Max.Resolution | 1920x1080/30fps |
| Stream | Stream1 1920x1080/1280x720 |
| Stream2 D1 to QVGA | |
| Image Setting | Rotate Mode,Saturation,Brightness,Contrast,Sharpness |
| HLC | Yes |
| 9/16 Corridor mode | Yes |
| ROI | Yes |
| Defog | N/A |
| NETWORK | |
| Network Protocols | IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast. |
| Alarm Trigger | Motion Detection,Networkdisconnect,Disk alarm |
| RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. |
| Security | User security authentication, Reset, Hardware Watch Dog |
| Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand) |
| System Compatibility | Onvif |
| INTERFACE | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| RS485 | N/A |
| BNC Output | N/A |
| Reset Button | N/A |
| Edge Storage | N/A |
| GENERAL | |
| Power Supply | DC12V/POE |
| Power Consumption | 2.5W(IR LED OFF)；5W（IR LED ON） |
| OperatingTemperature | Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F ) |
| Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) | |
| Operating Humidity | 0% - 90% RH |
| Ingress Protection | IP66 |
| Approvals | CE / FCC |
| Product Dimensions | Φ94*84mm |
| Product Weight | 360g |
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
