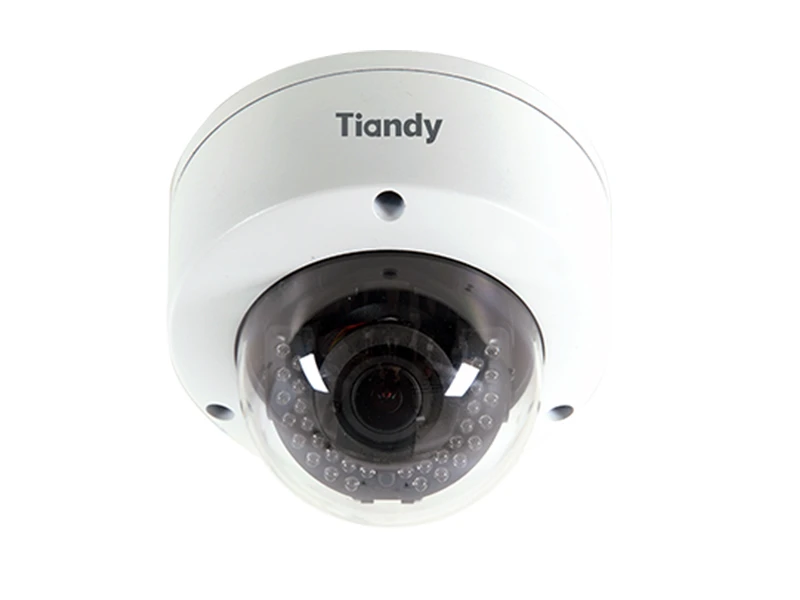

Tiandy TC NC24M IP IR Dome Kamera
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Core Processor | ARM9 Architecture |
| Operating System | Embedded Linux |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.05 Lux(F1.2,AGC ON) |
| B/W: 0.01 Lux(F1.2,AGC ON)，0 Lux with IR | |
| Shutter Time | 1s to 1/100,000s |
| Lens | Motorized 2.8-12mm, Angle of View: 101°～38° |
| Lens Mount | φ14 |
| Auto Iris | DC Drive |
| Day& Night | Dual IR Cut Filter with Auto Switch |
| WDR | 100 dB |
| DNR | 3D |
| Focus | Auto |
| S/N Ratio | >60dB |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM |
| Audio Bit Rate | 8kbps |
| 32kbps | |
| 48kbps | |
| Image | |
| Max Resolution | 1920x1080 |
| Frame Rate | PAL:1080p@25fps，960p@25fps，720p@25fps，D1@25fps |
| NTSC：1080p@30fps，960p@30fps，720p@30fps，D1@30fps | |
| Triple Stream | Mainstream: 1080P(1920*1080) |
| Substream: D1(704*576) | |
| 3rd stream:CIF（352×288） | |
| Image Settings | Brightness, Saturation, Contrast,Flip Mode |
| HLC | Y |
| Smart Defog | Y |
| Corridor Format | Y |
| EIS | Y |
| ROI | 4 Zones |
| Privacy Mask | Y |
| Picture Overlay | 200 × 200, BMP 24bit, Zone Configurable |
| OSD | Size:16×16, 32×32, 24×24, 48×48, 64×64, |
| Letters, Week, Date, Time, Total 5 Regions | |
| Network | |
| Browser | IE8/Firefox24 or above |
| Network Storage | FTP |
| NTP | Y |
| Video Analytics | Tripwire/Double Tripwire/Perimeter/alarm times count |
| Protocols | TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/ |
| DDNS/NFS/FTP/NTP/RTP/RTSP /SMTP | |
| User Permission | 4 Level/8 Users |
| Remote Connection | 8 Users Access at the Same Time |
| System Compatibility | Onvif，P2P |
| Interface | |
| Audio Input | 1-ch |
| Audio Output | 1-ch |
| Ethernet | 1-ch RJ45 10M/100M Ethernet Interface |
| Alarm Input | 2-ch |
| Alarm Output | 2-ch |
| On-board Storage | MicroSD Card Slot ,Up to 64GB |
| Reset Button | Y |
| General | |
| Language | English,Spanish,Korean,Italian,Turkish,Thai,Russian |
| Polish,French,Traditional Chinese,Simplified Chinese | |
| Operating Conditions | -30℃～60℃(IR OFF) /-30℃～40℃(IR ON), 0～95% RHG |
| Power Supply | DC 12V±25%/PoE 802.3af |
| Power Consumption | Max. 3W(IR OFF) (ICR Instant Switch 11W) |
| Max. 6W(IR ON) POE(MAX:12W) | |
| Circuit Protection | TVS 6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V) |
| Impact Protection | IP66, IK10 |
| IR Range | 20-30m |
| IR LEDs | 32pcs |
| Dimensions | 150mm×150mm×122mm |
| Weight | 1.0KG (IP Camera Only); 1.3KG (with Packing Box) |
| S+265: | Tiandy enhanced H.265 codec |
| ANR: | Auto store video in SD card when NVR disconnected, and upload video to |
| NVR when resumed connection(Only Support Tiandy ANR NVR) | |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
