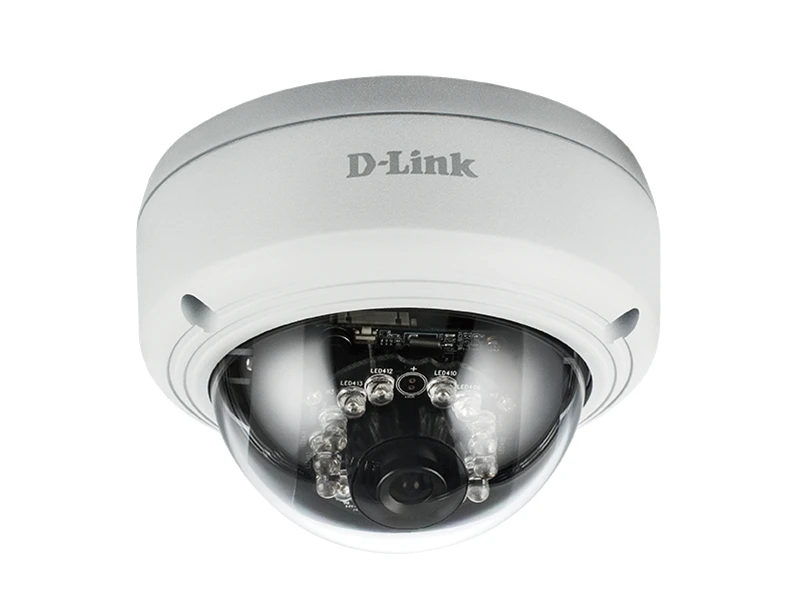

D-Link DCS 4603 IP HD Dome Kamera
Özellikler
Maximum Resolution
- 3 Megapixel (2048 x 1536)
Environment Capabilities
- Indoor Only
- Warranty
- 5-Year Warranty
Light Conditions
- 3D Filter
- Built-in IR Illuminator
- Day/Night IR Filter
- Wide Dynamic Range (WDR)
Operating Temperature Range
- 0 ° to 40 ° C
- 32° to 104° F
Network Connectivity
- 10/100 Ethernet Port
Power Options
- 12V DC, 1.5 A Adapter (Optional – Not Included)
- Power over Ethernet (PoE)
Pan/Tilt/Zoom Functionality
- Digital PTZ
Available Accessories
- Mounting options
Interoperability
- Onvif-Compliant
- Unified D-Link API
Frame Rate at Maximum Resolution
- 30 FPS
Teknik Özellikler
| Camera Hardware Profile |
| 1/3” 3 Megapixel Progressive CMOS Sensor |
| 32 ft IR Illumination Distance |
| Automatic Infrared-Cut Filter module for night viewing |
| 10x digital zoom |
| Minimum object distance: 8" |
| Focal length: 2.8mm |
| Aperture F2.0 |
| --Angle of view |
| -(H) 92° |
| -(V) 66° |
| --Adjustment angle (non-motorized) |
| -Pan: 340° |
| -Tilt: 60° |
| -Rotation: 340° |
| Image Features |
| Configurable image size, quality, frame rate, and bit rate |
| Time stamp and text overlays |
| Configurable motion detection windows |
| Configurable privacy mask zones |
| Configurable shutter speed, brightness, saturation, contrast, sharpness, digital WDR and 3D filter |
| Video Compression |
| Simultaneous H.264/MJPEG triple format compression |
| H.264 multicast streaming |
| JPEG for still images |
| Video Resolution |
| 16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 |
| 4:3 - 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480 |
| Frame Rate |
| Up to 30 fps |
| Up to 15 fps = 4:3 - 2048 x 1536 |
| External Device Interface |
| 10/100 BASE-T Fast Ethernet port |
| Supports 802.3af PoE Class 2 |
| Network |
| Network Protocols |
| IPv6, IPv4, ARP, TCP, UDP, ICMP |
| DHCP client |
| NTP client (D-Link) |
| DNS client |
| DDNS client (D-Link) |
| SMTP client (SSMTP support) |
| FTP client |
| HTTP/HTTPS |
| Samba client |
| PPPoE |
| UPnP/UPnP port forwarding |
| RTP/RTSP/RTCP |
| IP filtering |
| CoS/QoS/DSCP |
| Multicast |
| SNMP |
| Bonjour |
| ONVIF compliant |
| Security |
| Administrator and user group protection |
| Password authentication |
| HTTP and RTSP digest encryption |
| System Management |
| System Requirements for Web Interface |
| Browser: Internet Explorer 8 or above, Firefox or Safari |
| Operating System: Microsoft Windows 10/8/7 or Mac OS XS 10.7 or higher |
| Event Management |
| Motion detection |
| Event notification and uploading of snapshots/video clips via e-mail or FTP |
| Supports multiple SMTP and FTP servers |
| Multiple event notifications |
| Multiple recording methods for easy backup |
| Remote Management |
| Take snapshots/video clips and save to local hard drive |
| Configuration interface accessible via web browser |
| D-ViewCam™ System Requirements |
| Operating System: Microsoft Windows 8/7 |
| Web Browser: Internet Explorer 7 or higher |
| Protocol: Standard TCP/IP |
| D-ViewCam™ Software Functions |
| Remote management/control of up to 32 cameras |
| Supports all management functions provided in web interface |
| Viewing of up to 32 cameras on one screen |
| Scheduled motion triggered, or manual recording options |
| General |
| Weight |
| 1.16 lbs |
| Power over Ethernet |
| 802.3af Class 2 |
| Power Adapter (not included) |
| Input: 100 to 240V AC, 50/60 Hz |
| Output: 12V DC 1.5A |
| Power Consumption |
| 5.6 Watts ±5% |
| Temperature |
| Operating: 32°F to 104°F (0°C to 40° C) |
| Storage: -4°F to 158° F (-20°C to 70°C) |
| Humidity |
| Operating: 20% to 80% non-condensing |
| Storage: 5% to 95% non-condensing |
| Certifications |
| CE |
| CE LVD |
| FCC |
| C-Tick |
| Warranty |
| 5-Year Limited Warranty |
Teknik Kısa
Irled : Var
Çözünürlük : 3MP
