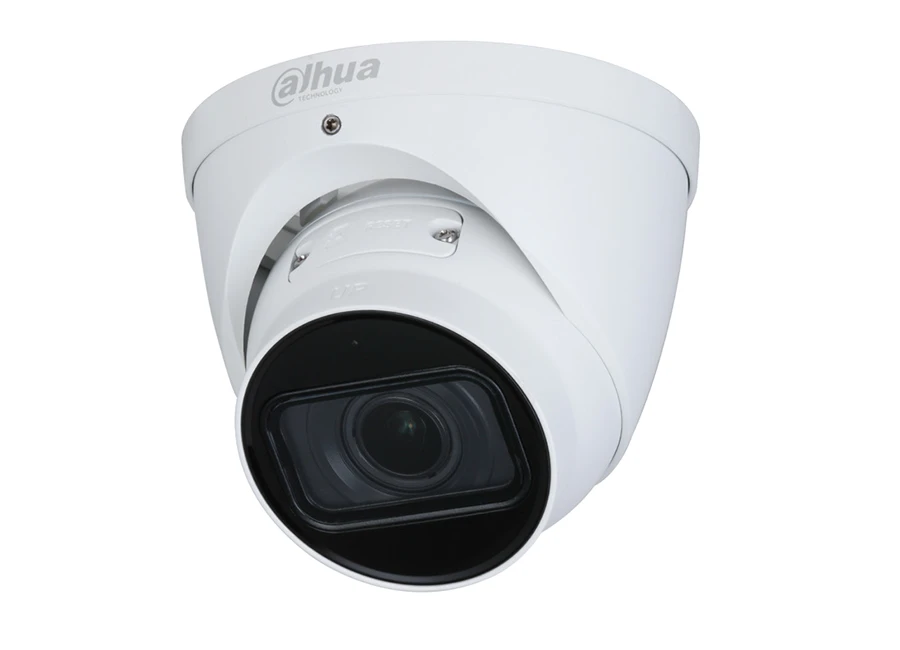

Dahua IPC-HDW3841T-ZAS IP Eyeball Kamera

Özellikler

8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
Outputs max. 8MP (3840 × 2160) @20 fps (AI function enabled by default) and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled)
H.265 codec, high compression rate, low bit rate
Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection , no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power supply
IP67 protection
SMD Plus

Teknik Özellikler

Model code	IPC-HDW3841T-ZAS
Series	WizSense Series
Chip Inch Size	1/2.8 inch
Colour Type	Colour / Monochrome
Resolution	8 MP resolution
Specialist Type	Network
Sensitivity Lux	0.007 lux
Electrical Specifications	Voltage: 12 V DC, PoE
Electrical Specifications	Power Consumption: 2.6W (12V DC); 3.3W (PoE)
Motion Activated	Yes
Focal Length mm	2.7 ~ 13.5
Wide Dynamic Range	Yes
Picture Elements HxV	3840 x 2160
Network Properties	Image Frame Rate: 25 ~ 30 fps
	Interface: RJ-45 (10/100 Base-T)
	Network Protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Physical Specifications	Weight g: 685
Physical Specifications	Dimensions mm: 108 x Φ122
Environmental Specifications	Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F)
	Protection: IP67
	Operating Humidity %: <95
System Requirements	Web Browser: IE: IE8; IE9; IE11 / Chrome / Firefox
Additional info	8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
	Outputs max. 8MP (3840 × 2160) @20 fps (AI function enabled by default) and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled)
	H.265 codec, high compression rate, low bit rate
	Built-in IR LED, max. IR distance: 50 m
	ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
	Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
	Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
	Abnormality detection: Motion detection, video tampering, scene changing, audio detection , no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
	Supports max. 256 G Micro SD card, built-in Mic
