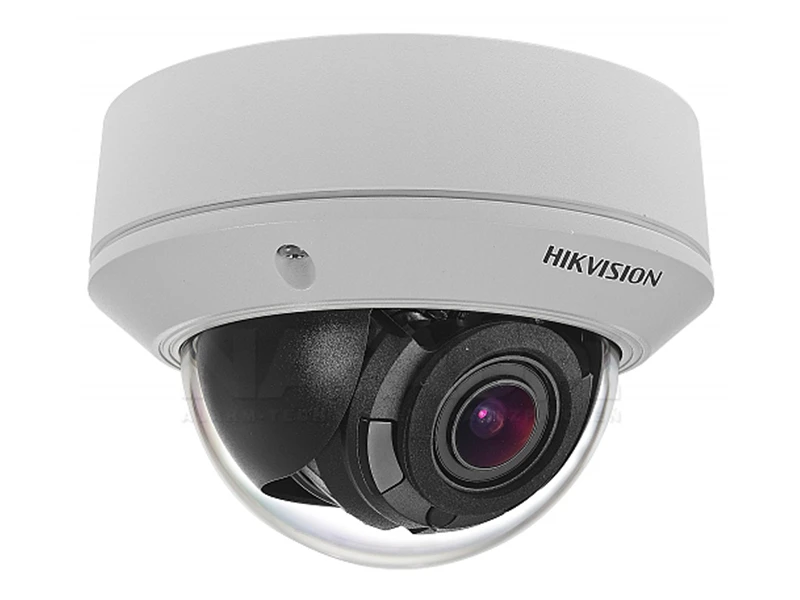

Hikvision DS 2CD1721FWD IZ IP HD Dome Kamera
Özellikler
- 1/2.8" progressive scan CMOS
- Up to 2.0 megapixel
- 2.8 mm to 12 mm manual/motorized (with-Z) vari-focal lens
- Up to 30 m IR range
- Dual stream
- 120dB WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- PoE (Power over Ethernet)
- IP67, IK10
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination | Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR |
| Shutter Speed | 1/3s to 1/100,000 s, support slow shutter |
| Lens | 2.8 mm to 12 mm @F1.4, horizontal field of view: 100° to 35° |
| Lens Mount | Φ14 |
| Day &Night | IR cut filter with auto switch |
| 3-Axis Adjustment | Pan: 0° to 360°, tilt: 0°to 75°, rotation:0° to 360° |
| DNR(Digital Noise Reduction) | 3D DNR |
| WDR (Wide Dynamic Range) | 120 dB |
| Compression Standard | |
| Video Compression | Main stream: H.264+/H.264 |
| Sub stream: H.264/MJPEG | |
| H.264 Type | Baseline profile/Main profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720) |
| Max. Frame Rate | 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-stream | 50Hz: 25fps @(704 × 576, 640 × 360, 352 × 288, 320 × 240) |
| Max. Frame Rate | 60Hz: 30fps @(704 × 480, 640 × 360, 352 × 240, 320 × 240) |
| Image Settings | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software |
| Day/Night Switch | Support auto, scheduled |
| Others | Mirror, BLC (area configurable), region of interest (support 1 fixed region) |
| Network | |
| Network Storage | Support micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Detections | Motion detection |
| Alarms | Video tampering, network disconnected, IP address conflicted, HDD full, HDD error |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Standard | ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI |
| General Function | One-key reset,anti-flicker,heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Video Output (Without-Z) | 1Vp-p composite output(75Ω/BNC) |
| Reset | Support |
| General | |
| Operating Conditions | -30 °C to60°C (-22 °F to140°F), humidity: 95% or less (non-condensing) |
| Power Supply | DC12V ± 25%, PoE (802.3af) |
| Power Consumption | Max. 5.5 W/11 W (With-Z) |
| Protection Level | IP67, IK10 |
| IR Range | Up to 30 m |
| Dimensions | Φ141 mm ×99.9 mm (5.6"× 3.9") |
| Weight | 800 g (1.76 lb.) |
Hikvision DS 2CD1721FWD IZ IP HD Dome Kamera Pdf Dosyası624.48 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
