Açıklama

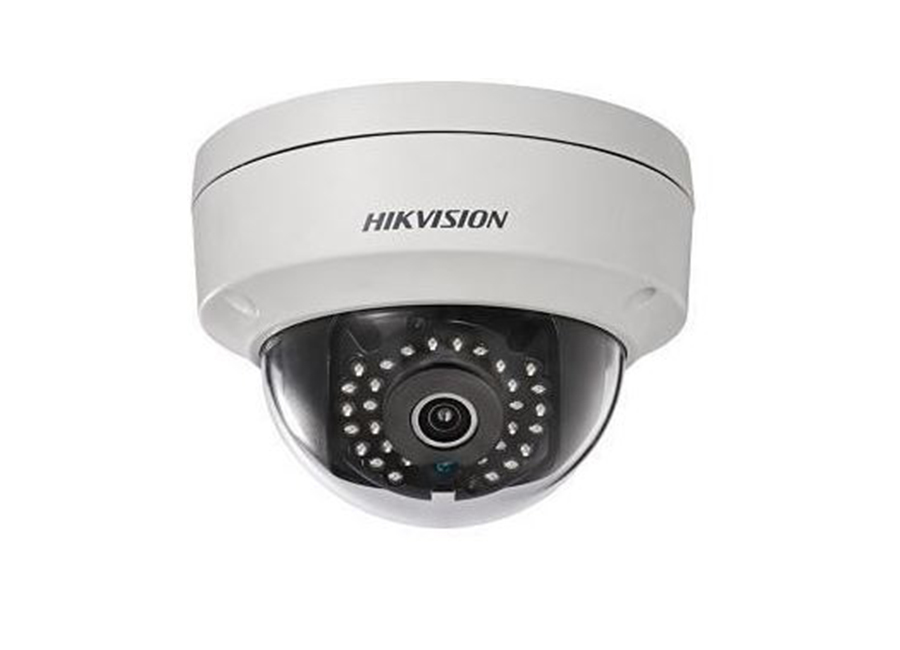

Hikvision DS 2CD211PF I IP Dome Kamera

Özellikler

1.3MP 1/3'' Progressive scan CMOS
Support dual streams
Up to 30 meters IR range
-S: Two-way audio
-S: Audio/Alarm I/O
-W: Support Wi-Fi
IR cut filter with auto switch
DC12V & PoE
Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Ingress Protection level: IP67
IK10

Teknik Özellikler

Camera
Image Sensor	1/3" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Min. Illumination	0.028 Lux @ (F2.0, AGC ON) ,0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Lens	4mm@ F2.0 (2.8mm, 6mm optional)
Lens Mount	M12
Adjustment Range	Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	Digital WDR
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.264/MJPEG
H.264 code profile	Baseline Profile / Main Profile
Video bit rate	32Kbps~8Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Audio bit rate	64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2)
Dual Stream	Yes
Max. Image Resolution	1280x960
Frame Rate	50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720)
Frame Rate	60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720)
Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC	Yes, zone configurable
3D DNR	support
ROI	support
Network
Network Storage	NAS (Support NFS,SMB/CIFS)
Alarm Trigger	Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols	TCP/IP, UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
Protocols	NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function	User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility	ONVIF (Profile S, Profile G),ISAPI
Interface
Audio	1-ch audio in, Mic in/Line in;
Audio	1-ch audio out
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Alarm	1 alarm I/O
Alarm Input	1
Alarm Output	1
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Wi-Fi Specification (-W)
Wireless Standards	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	20/40MHz Support
Modulation Mode	802.11b: CCK, QPSK, BPSK
Modulation Mode	802.11g/n: OFDM
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate	11b: 11Mbps
	11g: 54Mbps
	11n: up to 150Mbps
Wireless Range	50m(depend on environment)
Protocols	802.11b: CCK, QPSK, BPSK
Protocols	802.11g/n: OFDM
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 V DC ± 10%, PoE (802.3at)
Power Consumption	Max. 5W
Impact Protection	IEC60068-2-75Eh, 50J; EN50102, IK10
Weather Proof	IP67
IR Range	Up to 30m
Dimensions	Φ111 × 82 (4.4” × 3.2”)
Weight	500g (1.1 lb)
