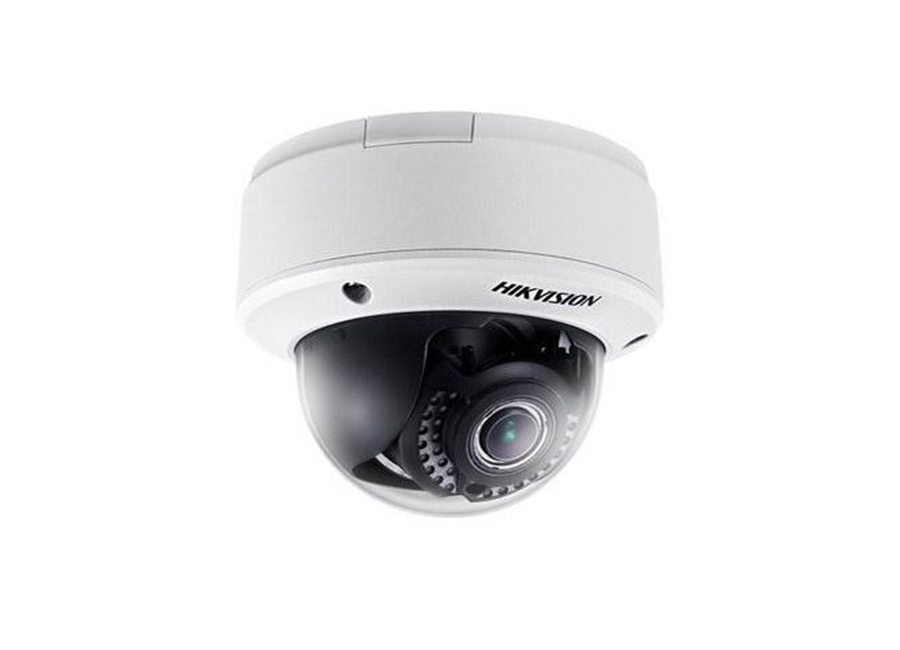

Hikvision DS 2CD4112F Z IP Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma: | 0.01 Lux @ (F1.2, AGC ON), 0 lux with IR |
| 0.014 Lux @ (F1.4, AGC ON), 0 lux with IR | |
| Objektif Hızı | 1 s to 1/100,000 s |
| Lens | 2.8-12mm @ F1.4, angle of view: 98.4-30.2° |
| -Z: 2.8-12mm @ F1.4, angle of view: 98.4-30.2° | |
| Lens Mount | φ14 |
| Auto Iris | DC drive |
| Ayarlanan Aralık | Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Dijtal Gürültü Azaltma | 3D DNR |
| Focus | Motorized VF lens(-Z model) |
| Compression Standard | |
| Video Compression | H.264/MPEG4/MJPEG |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Üçüncü Akım | Yes |
| Image | |
| Max. Image Resolution | 1280 × 1024 |
| Çerçeve Hızı | 50Hz: 25fps (1280 × 1024),25fps (1280 × 960), 50fps (1280 × 720) |
| 60Hz: 30fps (1280 × 1024),30fps (1280 × 960), 60fps (1280 × 720) | |
| Üçüncül Akış | Independent with Main Stream and Sub Stream, up to |
| 50Hz: 25fps(1280 × 1024) | |
| 60Hz: 30fps (1280 × 1024) | |
| Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC | Support |
| HLC | Support |
| Akıllı Buğu Giderme | Support |
| EIS | Support |
| ROI | Support |
| Resim Yerleşimi | 128 × 128, BMP 24bit, zone configurable |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | |
| Ses Girişi | 1-ch 3.5 mm audio interface, MIC IN/LINE IN |
| Ses Çıkışı | 1-ch 3.5mm audio interface (line level, 600 Ω) |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface and 1 RS-485 interface |
| Alarm Girişi | 1 |
| Alarm Çıkışı | 1 |
| Video Output | 1Vp-p Composite Output (75 Ω, BNC) |
| Dahili Depolama | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| GÜç Tüketimi | Max. 6 W |
| Max. 9 W(IR: 2W, motorized VF lens: 1W) | |
| Impact Protection | IK10 |
| IR Range | Approx. 10 to 30 meters |
| Boyutlar | Φ 140 × 121.8 mm (Φ 5.51” × 4.80”) |
| Ağırlık | 1400 g (3.09 lbs) |
Hikvision DS 2CD4112F Z IP Dome Kamera Pdf Dosyası327.75 KB
Teknik Kısa
Çözünürlük : 1.3MP
Irled : Var
