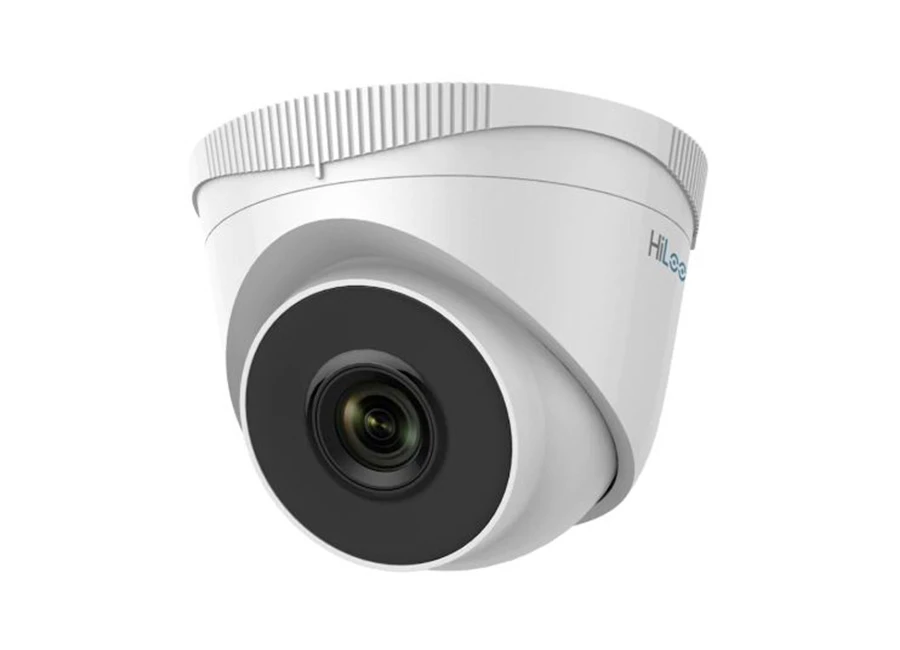

HiLook IPC T200 IR IP Turret Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Minimum Aydınlatma | Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON); |
| B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR | |
| Slow shutter | support |
| Objektif Hızı | 1/3 s to 1/100, 000 s |
| Lens | 2.8 mm @F2.0, horizontal FOV 114°, vertical FOV 62°, diagonal FOV: 135° |
| 4 mm @F2.0, horizontal FOV 87°, vertical FOV 48°, diagonal FOV: 102° | |
| 6 mm @F2.0, horizontal FOV 58°, vertical FOV 32°, diagonal FOV: 75° | |
| Lens Mount | M12 |
| Ayarlanan Aralık | Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° |
| Wide Dynamic Range | Digital WDR |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Compression | H.264+/H.264/MJPEG |
| H.264 Türü | Baseline Profile/Main Profile |
| Video bit rate | 32Kbps~8Mbps |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Ana Akış | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Çerçeve Hızı | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Görüntü İyileştirme | BLC, 3D DNR |
| BLC | Support |
| Gündüz / Gece Anahtarı | Day, Night, Auto, Scheduled |
| Network | |
| Protokoller | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| GÜç Tüketimi | 12 VDC, 0.4 A, max. 5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W |
| Weather Proof | IP67 |
| Boyutlar | Φ 110 mm × 93.2mm (Φ 4.3" × 3.7") |
| Ağırlık | 330 g (0.7 lb.) |
Teknik Kısa
Irled : Var
Çözünürlük : 1MP (720P)
