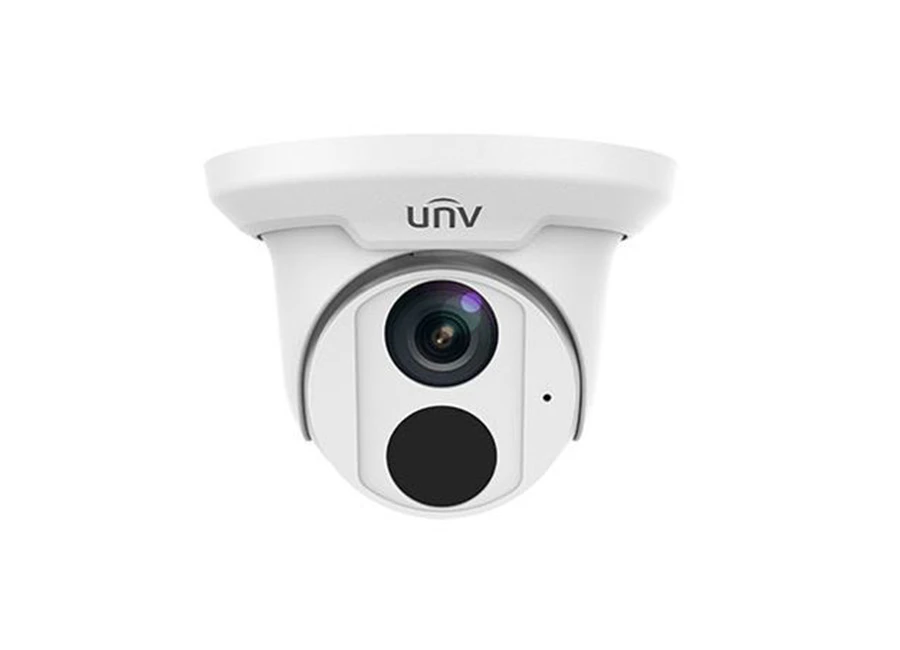

Uniview IPC VP 315SR3 UAD 28 IR IP Dome Kamera

Özellikler

Optics

Starlight illumination
Day/night functionality
Up to 120dB WDR (Wide Dynamic Range)
Smart IR, up to 30m (98ft) IR distance

Compression

Ultra 265, H.264, MJPEG
Embedded smart algorithm
Triple streams
9:16 corridor format

Network

ONVIF Conformance

Structure

Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
4KV surge protection designed for network interface
IP67
3-Axis

Teknik Özellikler

IPC-VP-315SR3-UAD-28				IPC-VP-315SR3-UAD-40
Camera
Sensor	1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F1.6			4.0mm@F1.6
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)		Identify (m)
	2.8	63	25.2	12.6		6.3
	4.0	90	36	18		9.1
Angle of view (H)	105.3°			79.7°
Angle of View (V)	69.5°			51.8°
Angle of View (O)	136.8°			98.1°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 90°		Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.005Lux (F1.6, AGC ON)
	0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 5MP (25921944), Max 20fps; 4MP (25601440), Max 30fps; 3MP (2048*1536), Max 30fps;
	2MP (1920*1080), Max 30fps;
	Sub Stream: 2MP (1920*1080), Max 30fps;
	Third Stream: D1 (720*576), Max 30fps
HLC	Supported
BLC	Supported
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection, Audio detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8KHZ
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, Profile T), API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic	Supported
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 5W
Dimensions (Ø x H)	Φ126 x 94mm (Ø5.0” x 3.7”)
Weight	0.45kg (0.99lb)
Operating Conditions	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
