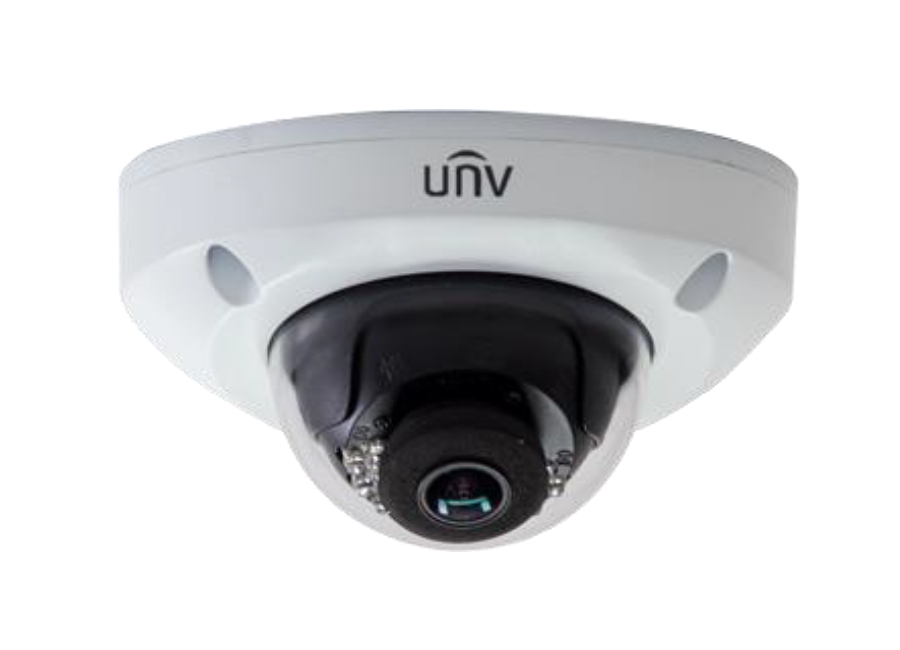

Uniview IPC312SR VPF36 IP HD Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Sensor | 1/2.8", 2 megapixel, progressive scan CMOS |
| Lens | 3.6 mm@F2.0 |
| Angle of View (H) | 79.7° |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Min. Illumination | Colour: 0.02 Lux (F2.0, AGC ON) |
| 0 Lux with IR | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | ≥52dB |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | H.264, MJPEG |
| Frame Rate | 1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 1 fps; CIF (352*288): Max. 1 fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Storage | |
| Edge Storage | Micro SD, Up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | audio cable |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Built-in Mic | Supported |
| Network | 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC±25%, PoE (IEEE 802.3af) |
| Power consumption: 3~5W | |
| Dimensions (Ø x H) | Φ110 x 61 mm (Ø4.3” x 2.4”) |
| Weight | 0.25 kg (0.55 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP66 |
| Vandal Resistant | IK10 |
Uniview IPC312SR VPF36 IP HD Dome Kamera PDF Dosyası396.08 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
