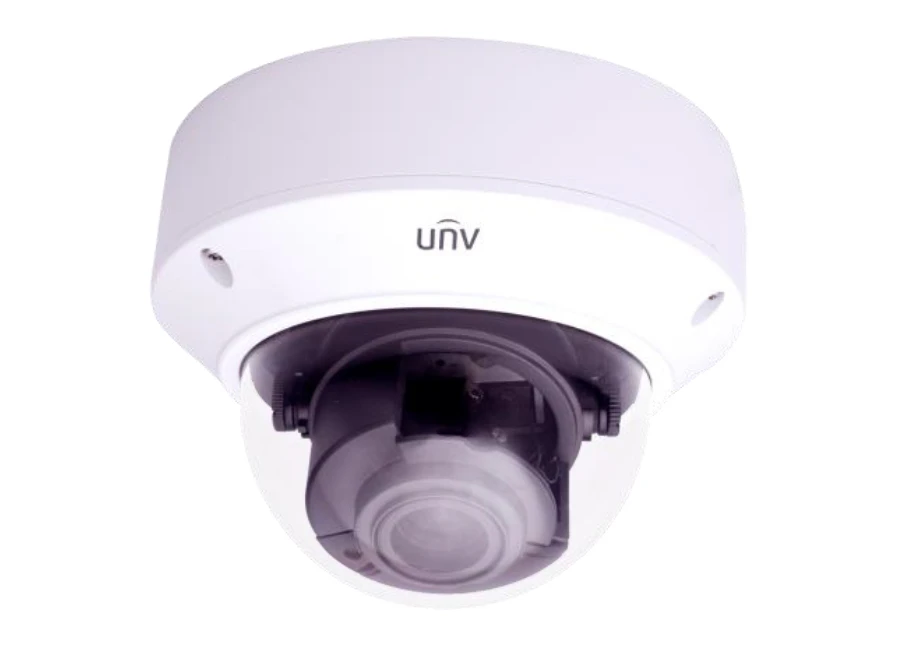

Uniview IPC3232ER VS C IP HD Dome Kamera
Özellikler
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- Lowlight surveillance
- 3D DNR (Digital Noise Reduction)
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- ONVIF Conformance
- Support PoE power supply
- Built-in PoE splitter that outputs DC 12V
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
Teknik Özellikler
| Camera | |
| Sensor | 1/2.9", 2 megapixel, progressive scan CMOS |
| Lens | 2.8~12 mm@F1.4 |
| Angle of View (H) | 94.0° (wide) ~28.0° (tele) |
| Zoom/Focus | Manual |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Min. Illumination | Colour: 0.03 Lux (F1.4, AGC ON) |
| 0 Lux with IR | |
| IR Range | Up to 30m (98 ft) IR range |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| WDR | Digital WDR |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720×576): Max. 8 fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Audio | |
| Audio Compression | N/A |
| Two-way audio | N/A |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detectio |
| Exception Detection | N/A |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | N/A |
| N/A | |
| N/A | |
| Alarm I/O | N/A |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Reset Button | Supported |
| Power Output | DC12V Power Output With PoE |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: max. 8.5 W | |
| Dimensions (Ø x H) | Φ148 x 111.3 mm (Ø5.8” x 4.4”) |
| Weight | 0.75 kg (1.7 lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
Uniview IPC3232ER VS C IP HD Dome Kamera Pdf Dosyası407.79 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
