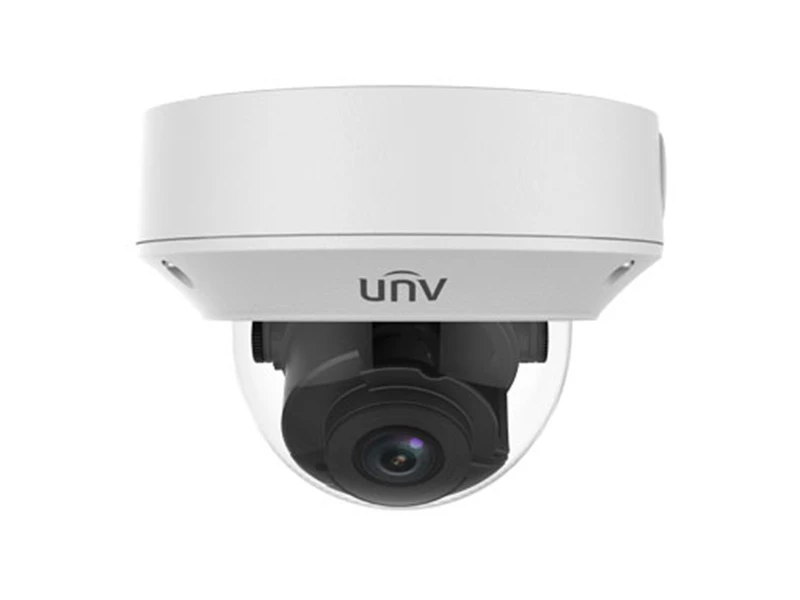

Uniview IPC3232ER3 HDUVZ IP IR Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |||||||
| Sensor | 1/1.8", progressive scan, 2.0 megapixel, CMOS | ||||||
| Lens | 2.8~12 mm, AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
| 2.8mm | 33.6 | 13.4 | 6.7 | 3.4 | |||
| 12mm | 144.0 | 57.6 | 28.8 | 14.4 | |||
| Angle of View (H) | 128.2°~34.7° | ||||||
| Angle of View (O) | 71.7°~19.2° | ||||||
| Adjustment angle | 166.7°~40.9° | ||||||
| Adjustment Range | PAN：°~360° | Tilt：°~80° | Rotate：°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||||
| Minimum Illumination | Colour: 0.0005 Lux (F1.2, AGC ON) | ||||||
| 0Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream:2MP (1920×1080): Max. 60 fps; | ||||||
| Sub Stream:2MP (1920×1080): Max. 60 fps; | |||||||
| Third Stream:D1 (720×576): Max. 60 fps; | |||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |||||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||||
| cross line | Cross a pre-defined virtual line | ||||||
| motion detection | Moving within a pre-defined virtual region | ||||||
| Recognition | Face detection、Audio detection | ||||||
| Intelligent Identification | Defocus, Scene Change | ||||||
| Statistical Analysis | People counting | ||||||
| General Function | Watermark, IP Address Filtering,Tampering Alarm, Alarm input, Alarm output,Access Policy, ARP Protection, RTSP Authentication,User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way audio | Supported | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8 KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | |||||||
| Compatible Integration | ONVIF(Profile S, Profile G), API | ||||||
| Interface | |||||||
| Audio I/O | Audio cable | ||||||
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |||||||
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | 1 BNC,impedance 75 Ω; amplitude 1 V [p-p] | ||||||
| General | |||||||
| Power | DC12V±25%, PoE (IEEE802.3 af) | ||||||
| Power consumption: Max.9w | |||||||
| Dimensions (Ø x H) | Φ148 x 111.3 mm (Ø5.8” x 4.4”) | ||||||
| Weight | 0.84 kg (1.85 lb) | ||||||
| Working Environment | -40°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~90% RH(non-condensing) | ||||||
| Ingress Protection | IP67 | ||||||
| Vandal Resistant | IK10 | ||||||
| Reset Button | Supported | ||||||
Uniview IPC3232ER3 HDUVZ IP IR Dome Kamera Pdf Dosyası245.39 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
