Ürün arama
Açıklama

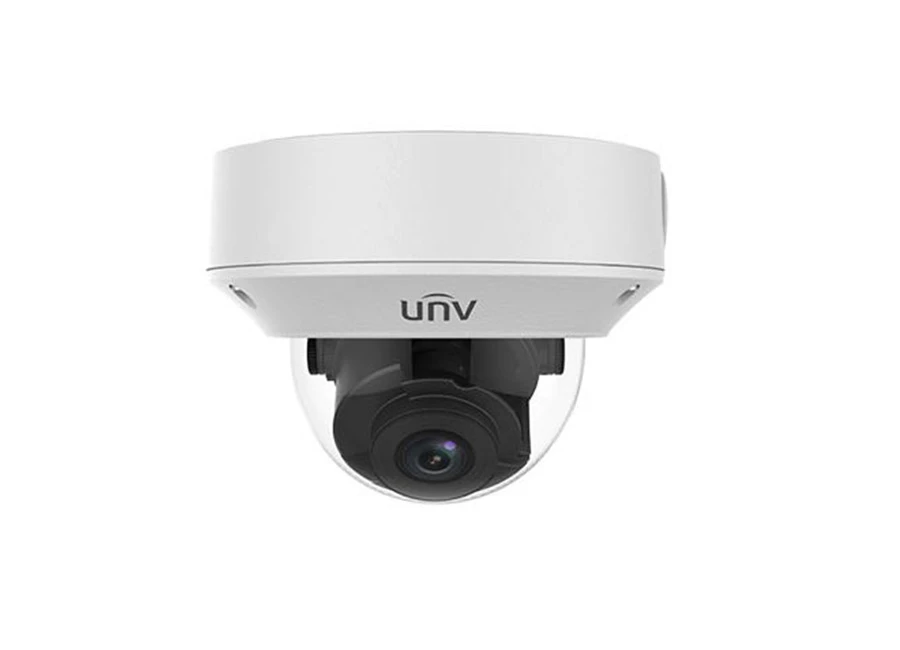

Uniview IPC3234SR3 DVZ28 ME IR IP Dome Kamera
Özellikler
Optics
- Day/night functionality
- Smart IR, up to 30m (98 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Lowlight surveillance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in motorized lens for remote zoom
- Ultra 265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
Network
- ONVIF Conformance
Teknik Özellikler
| IPC3234SR3-DVZ28-ME | |||||||
| Camera | |||||||
| Sensor | 1/3", progressive scan, 4.0 megapixel, CMOS | ||||||
| Lens | 2.8~12 mm, AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
| 2.8mm | 63 | 25.2 | 12.6 | 6.3 | |||
| 12mm | 270 | 108 | 54 | 27 | |||
| Angle of View (H) | 91.0°~27° | ||||||
| Angle of View (V) | 54.4°~13.7° | ||||||
| Angle of View (O) | 118.3°~33.2° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||||
| Minimum Illumination | Colour: 0.005 Lux (F1.4, AGC ON) | ||||||
| 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >55 dB | ||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.264,MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream:4MP (2592×1520): Max. 30 fps，4MP (2560×1440): Max. 30 fps，3MP (2048×1520): Max. 30 fps; | ||||||
| Sub Stream:2MP (1920×1080): Max. 30 fps; | |||||||
| Third Stream:D1(720×576) : Max. 30fps | |||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way audio | Supported | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8 KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | ||||||
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | ||||||
| Interface | |||||||
| Audio I/O | Audio cable | ||||||
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |||||||
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |||||||
| Alarm I/O | 1.1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] | ||||||
| General | |||||||
| Power | DC12V±25%, PoE (IEEE802.3 af) | ||||||
| Power consumption: Max 7.2 W | |||||||
| Dimensions (Ø x H) | Φ148 x 111.3 mm (Ø5.8” x 4.4”) | ||||||
| Weight | 0.75 kg (1.7 lb) | ||||||
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing) | ||||||
| Ingress Protection | IP67 | ||||||
| Vandal Resistant | IK10 | ||||||
| Reset Button | Supported | ||||||
Uniview IPC3234SR3 DVZ28 ME IR IP Dome Kamera Pdf Dosyası910.5 KB
Teknik Kısa
Çözünürlük : 4MP
Irled : Var
