Açıklama

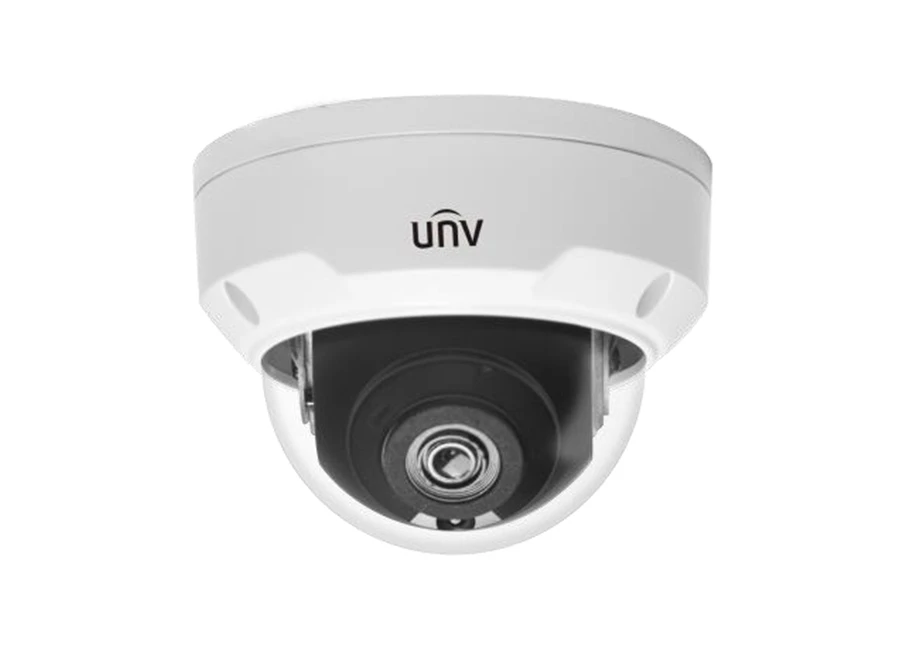

Uniview IPC324LR3 VSPF28 IP HD Dome Kamera
Özellikler
- Day/night functionality
- SmartIR, up to 30 m (98 ft) IR distance
- Car-grade LEDs, brighter and uniform light compensation
- 3D DNR (Digital Noise Reduction)
- H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- Customized OSD
- ONVIF Conformance
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide input voltage range of ±25%
- 2-Axis
- IK10 vandal resistant
- IP66
Teknik Özellikler
| Camera | |
| Sensor | 1/3", 4 megapixel, progressive scan CMOS |
| Lens | 2.8 mm@F2.2 |
| Angle of View (H) | 105.2° |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Min. Illumination | Colour: 0.2 Lux (F2.2, AGC ON) |
| 0 Lux with IR | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| WDR | Digital |
| Noise Reduction | 2D/3D |
| Video | |
| Max. Resolution | 2592 × 1520 |
| Video Compression | H.265, H.264,MJPEG |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps |
| 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps | |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| HLC | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Motion Detection | Up to 4 areas |
| Privacy Mask | Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
| Compatible Integration | ONVIF,API |
| Interface | |
| Network | 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: Max 5.0W | |
| Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) |
| Weight | 0.3 kg (0.66 lb) |
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP66 |
Uniview IPC324LR3 VSPF28 IP HD Dome Kamera Pdf Dosyası414.04 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 4MP
Ses : Var
Irled : Var
