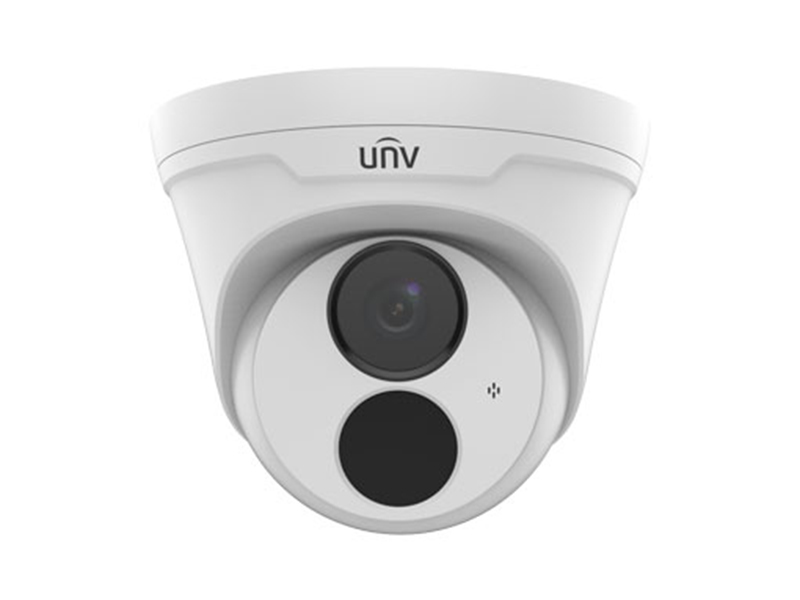

Uniview IPC3612LR3 PF40 C IP HD Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Sensor | 1/2.7", 2megapixel, progressive scan, CMOS |
| Lens | 4.0mm@F1.8 |
| Angle of view(H) | 80.8° |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) |
| 0 Lux with IR | |
| IR Range | Up to 30m (98 ft) IR range |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| WDR | Digital |
| Noise Reduction | 2D/3D |
| Video | |
| Max. Resolution | 1920×1080 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 1080P (1920×1080): Max. 25 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 8 fps |
| Video Streaming | Triple |
| ROI | Supported |
| HLC | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Motion Detection | Up to 4 areas |
| Privacy Mask | Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP |
| Compatible Integration | ONVIF,API |
| Interface | |
| Network | 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: Max 5.0W | |
| Dimensions (Ø x H) | Φ118 x 96 mm (Ø4.6” x 3.8”) |
| Weight | 0.2 kg (0.44lb) |
| Working Environment | -20°C ~ +50°C (-4°F ~ 122°F), Humidity ≤ 95% RH(non-condensing) |
Uniview IPC3612LR3 PF40 C IP HD Dome Kamera Pdf Dosyası378.52 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
