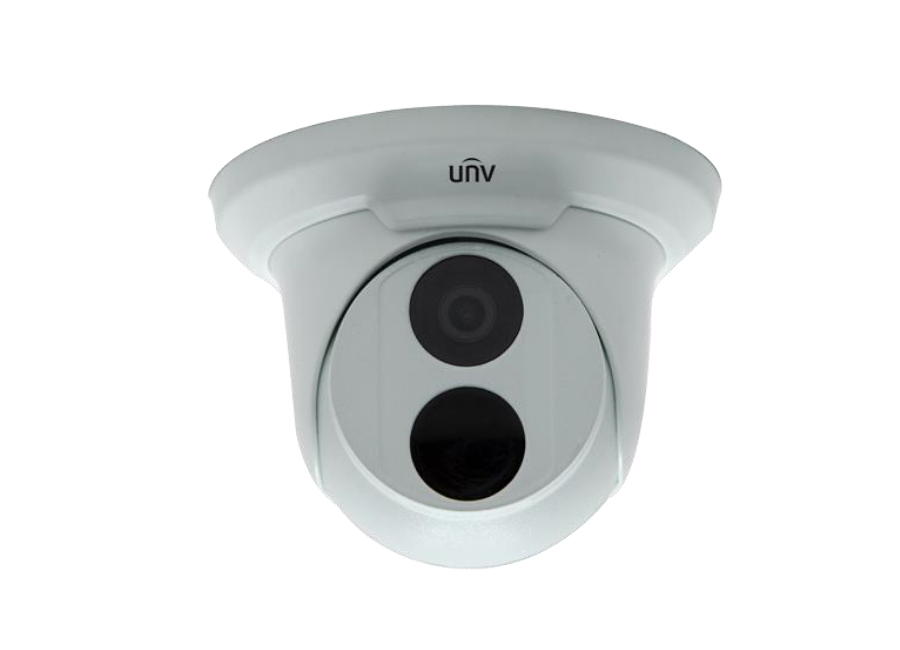

Uniview IPC3614SR3 DPF60M IP HD Dome Kamera
Özellikler
- Day/night functionality
- Up to 120 dB WDR (Wide Dynamic Range)
- Smart IR, up to 30 m (98 ft) IR distance
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 9:16 corridor format
- ONVIF Conformance
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- 4 KV surge protection designed for network interface
- IP67
Teknik Özellikler
| Camera | |
| Sensor | 1/3", 4megapixel, progressive scan, CMOS |
| Lens | 6mm@F1.8 |
| Angle of view(H) | 49.4° |
| Adjustment Range | Pan: 0°~360° , Tilt: 0° ~ 77°, Rotation: 0° ~ 360° |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) |
| 0 Lux with IR | |
| IR | 30m (98ft) IR range |
| Day/Night | IR-cut filter with auto switch (ICR) |
| WDR | 120 dB |
| AWB(Auto white balance) | Auto/manual |
| Gain Control | Auto/manual |
| Noise Reduction | 2D/3D |
| Video | |
| Max. Resolution | 2592×1520 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 4MP (2592×1520): Max.20 fps; 4MP (2560×1440): Max.25 fps |
| 3MP (2048×1520): Max.30 fps; 1080P (1920×1080): Max. 30 fps | |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 8 areas |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| Compatible Integration | ONVIF,API |
| Interface | |
| Network | 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: Max 5.5W | |
| Dimensions (Ø x H) | Φ126 x 94 mm (Ø5.0” x 3.7”) |
| Weight | 0.45 kg (0.99lb) |
| Operating Conditions | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP67 |
Uniview IPC3614SR3 DPF36M IP HD Dome Kamera PDF Dosyası539.92 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 4MP
Irled : Var
