Açıklama

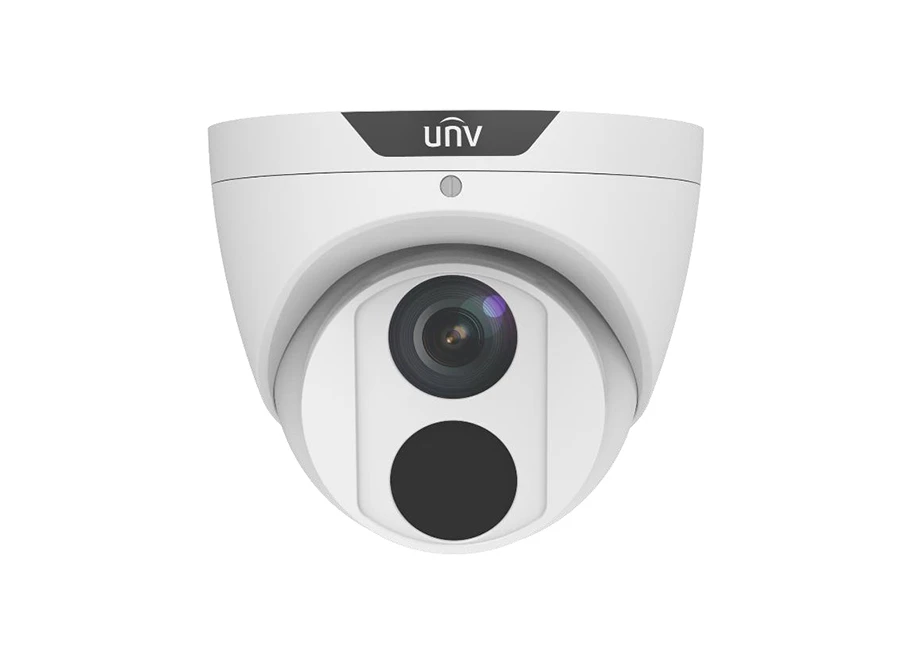

Uniview IPC3616SR3-ADPF60M IP Dome Kamera

Özellikler

Optics

Day/night functionality
Smart IR, up to 30m (98ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Up to 120dB WDR (Wide Dynamic Range)

Compression

Ultra 265, H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams

Network

ONVIF Conformance

Structure

Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis

Teknik Özellikler

	IPC3616SR3-ADPF28M	IPC3616SR3-ADPF36M		IPC3616SR3-ADPF60M
Camera
Sensor	1/2.7", 6.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0	3.6mm@F2.0		6.0mm@F2.0
Angle of view (H)	94.7°	76.8°		44.0°
Angle of View (V)	55.9°	40.7°		27.8°
Angle of View (O)	123.1°	99.8°		54.1°
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	2.8	86.9	34.8	17.4	8.7
	3.6	111.7	44.7	22.3	11.2
	6.0	186.2	74.5	37.2	18.6
Adjustment angle	Pan: 0° ~ 360°	Tilt: 0° ~ 90°		Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Min. Illumination	Colour: 0.03Lux (F2.0, AGC ON)
	0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:6MP(3072*2048) : Max. 25 fps;
	Sub Stream:1080P (1920*1080): Max. 25 fps
	Third Stream:D1 (720*576): Max. 25 fps
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection, Audio detection
Intelligent Identification	Object Left, Object Moving
Intelligent Identification	Defocus, Scene Change
Statistical Analysis	People counting
Audio
Audio Compression	G.711
Built-in Mic	Supported
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Interface
Network	10/100M Base-TX Ethernet
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 5.5W
Dimensions (Ø x H)	Φ110.5 x 94.1mm (Ø4.4” x 3.7”)
Weight	0.44kg (0.97lb)
Operating Conditions	-35℃ ~ 60℃ (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
