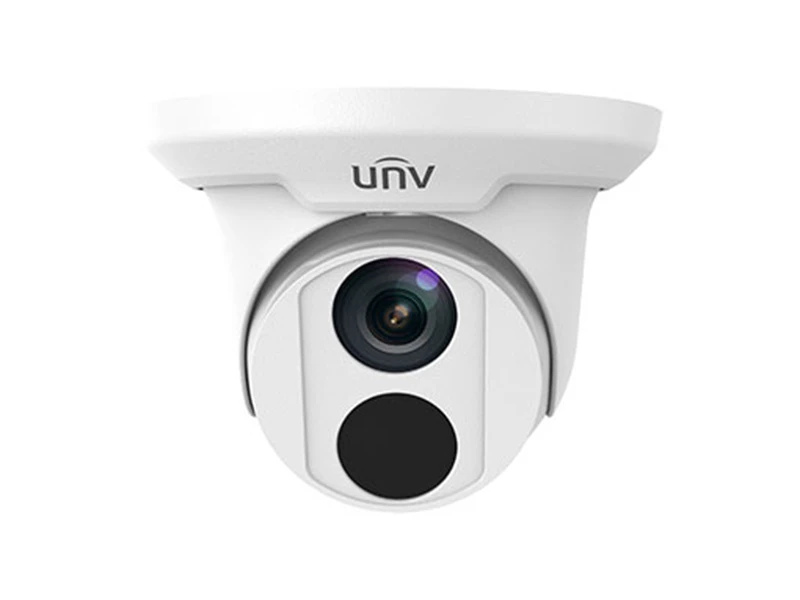

Uniview IPC3618SR3 DPF28 IP IR Dome Kamera
Özellikler
Optics
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Day/night functionality
- Up to 120 dB WDR (Wide Dynamic Range
- Ultra 265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 9:16 corridor format
Network
- ONVIF Conformance
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Teknik Özellikler
IPC3618SR3-DPF28 | IPC3618SR3-DPF40 | |||||||
| Camera | ||||||||
| Sensor | 1/2.5", 8.0megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||||
| Angle of view(H) | 118.1° | 91.6° | ||||||
| Angle of view(V) | 64.0° | 47.2° | ||||||
| Angle of view(O) | 153.5° | 112.7° | ||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
| 2.8mm | 50.4 | 20.2 | 10.1 | 5.0 | ||||
| 4.0mm | 72 | 28.8 | 14.4 | 7.2 | ||||
| Adjustment Range | Pan: 0°~360° | Tilt: 0° ~ 90° | Rotation: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||||
| Minimum Illumination | Colour: 0.001Lux (F2.0,AGC ON) | |||||||
| 0 Lux with IR | ||||||||
| Day/Night | ||||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >52 dB | |||||||
| IR Range | Up to 30m (98 ft)IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile,Main Profile,High Profile | |||||||
| Frame Rate | Main Stream:8MP(3840*2160): Max.15 fps， | |||||||
Sub Stream:1080P(1920*1080):Max. 30 fps; | ||||||||
Third Stream:D1(720*576) :Max. 30 fps | ||||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Smart | ||||||||
| Behavior Detection | Intrusion, cross line,motion detection | |||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | |||||||
| cross line | Cross a pre-defined virtual line | |||||||
| motion detection | Moving within
a pre-defined virtual region | |||||||
| Recognition | Face detection | |||||||
| Intelligent Identification | Defocus, Scene Change | |||||||
| Statistical Analysis | People counting | |||||||
| General Function | ||||||||
| Network | ||||||||
| Protocols | ||||||||
| Compatible Integration | ONVIF(Profile S), API | |||||||
| Interface | ||||||||
| Network | 10M/100M Base-TX Ethernet | |||||||
| General | ||||||||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | |||||||
| Power consumption: Max 5.5W | ||||||||
| Dimensions (Ø x H) | Φ126 x 94 mm(Ø5.0” x 3.7”) | |||||||
| Weight | 0.45kg ( 0.99lb) | |||||||
| Operating Conditions | -30℃ ~ 60℃ (-22°F ~ 140°F),Humidity ≤ 95% RH(non-condensing) | |||||||
| Ingress Protection | IP67 | |||||||
Uniview IPC3618SR3 DPF28 IP IR Dome Kamera Pdf Dosyası947.21 KB
