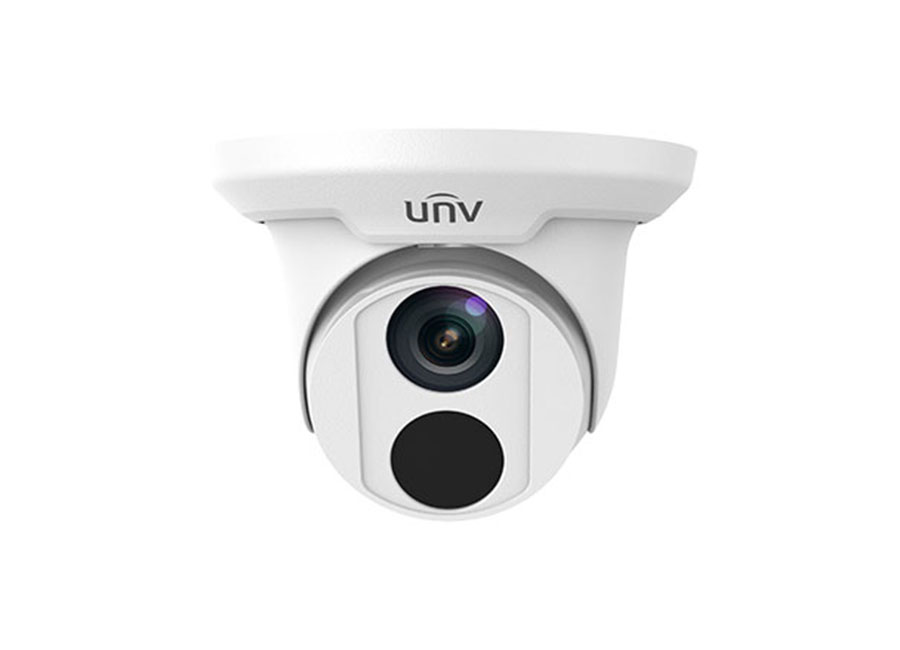

Uniview IPC3618SR3 DPF28M IR IP Dome Kamera

Name: Uniview IPC3618SR3 DPF28M IR IP Dome Kamera
Brand: Uniview

Optics

Network

Çözünürlük : 8MP

Irled : Var

IPC3618SR3-DPF28M					IPC3618SR3-DPF40M
Camera
Sensor	1/2.5", 8.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0				4.0mm@F2.0
Angle of view (H)	118.1°				91.6°
Angle of view (V)	64.0°				47.2°
Angle of view (O)	153.5°				112.7°
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)	Identify (m)
	2.8	50.4		20.2	10.1	5.0
	4.0	72		28.8	14.4	7.2
Adjustment Range	Pan: 0° ~ 360°		Tilt: 0° ~ 90°			Rotation: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.05Lux (F2.0, AGC ON)
	0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 8MP (3840*2160), Max 20fps;
	Sub Stream: 1080P (1920*1080), Max 30fps;
	Third Stream: D1 (720*576), Max 30fps
HLC	Supported
BLC	Supported
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration	ONVIF (Profile S, Profile T), API
Interface
Network	10M/100M Base-TX Ethernet
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 5.5W
Dimensions (Ø x H)	Φ126 x 94mm (Ø5.0” x 3.7”)
Weight	0.45kg (0.99lb)
Operating Conditions	-30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
