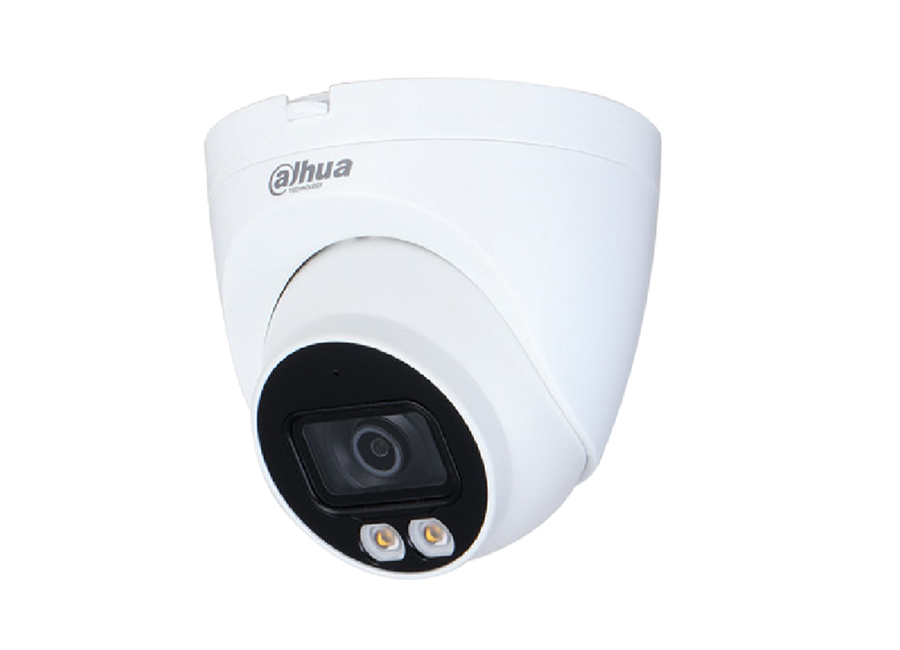

Dahua IPC-HDW2439T-AS-LED-S2 IP Eyeball Kamera
Özellikler
- 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
- Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm lights, max. illumination distance: 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, scene
- Supports max. 256 GB Micro SD card and built-in Mic
- 12V DC/PoE power supply
- IP67 protection
Teknik Özellikler
| Model code | IPC-HDW2439T-AS-LED-S2 |
| Series | Lite series |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4MP resolution |
| Digital (DSP) | Yes |
| Specialist Type | Network |
| Sensitivity Lux | 0.004 lux |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Electrical Specifications | Voltage: 12 V DC, POE |
| Power Consumption: 7.4 W | |
| Focal Length mm | 2.8 ~ 3.6 |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 2688 x 1520 |
| Network Properties | Image Frame Rate: 25 fps ~ 30 fps |
| Interface: RJ-45 (10/100 Base-T) | |
| Network Protocols: HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP; Bonjour | |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/3 ~ 1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | 56 |
| Compression Type | H.265, H.264, H.264B, MJPEG |
| Physical Specifications | Dimensions mm: 101 x 110 |
| Weight g: 365 | |
| Environmental Specifications | Protection: IP67 |
| Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) | |
| Operating Humidity %: 0 ~ 95 | |
| System Requirements | Web Browser: IE Chrome Firefox |
| HD | Yes |
| Additional info | 4MP, 1/3" CMOS image sensor, low illuminance, high image definition |
| Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps | |
| H.265 codec, high compression rate, ultra-low bit rate | |
| Built-in warm lights, max. illumination distance: 30 m | |
| ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments | |
| Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes |
Dahua IPC-HDW2439T-AS-LED-S2 IP Eyeball Kamera Pdf Dosyası428.44 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 4MP
