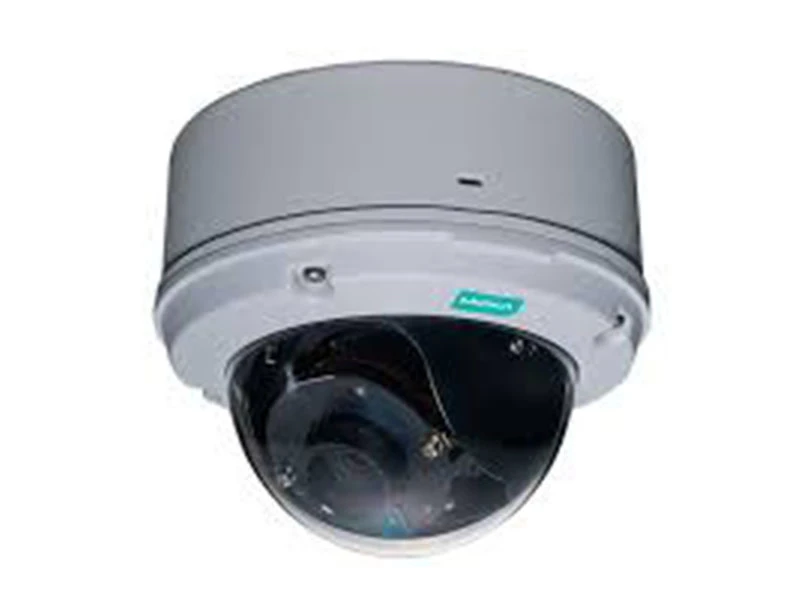

Moxa VPort 26A 1MP T IP HD Dome Kamera

Özellikler

-40 to 50°C or -40 to 75°C (T model) operating temperature, without heater or fan
1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 frames/second
DNR and WDR for superb image quality
Triple video streams with H.264 and MJPEG
3 to 9 mm day-and-night vari-focal lens with a built-in ICR (removable IR-cut filter ICR)
DynaStream™ support for maximum network efficiency
CBR Pro™ support for high image quality in limited bandwidth transmissions
ONVIF support for standardization and interoperability

Teknik Özellikler

Camera
Sensor	1/2.7” HD progressive scan CMOS
Lens	3X (controlled manually), f=3 mm (wide) to 9 mm (tele), F1.2 to F2.3
	• Horizontal angle of view: 112° to 35°
	• Vertical angle of view: 58° to 20°
	• Diagonal: 115° to 40°
Camera Angle (controlled manually)	• Pan: ±175°, Tilt: 0 to 85°
Camera Angle (controlled manually)	• Rotation: Pan: ±180°
Minimum Illumination	• Color: 0.2 lux at F1.2
Minimum Illumination	• B/W: 0.05 lux at F1.2
Day & Night	Auto/Color/BW; ICR control
Synchronization	Internal
White Balance	ATW/AWB
Electronic Shutter	Fixed (1/30 to 1/25000 sec)
S/N Ratio	50 dB (AGC OFF, DNR ON)
ICR Control	Auto (light sensor control) or DI control
DNR	Built-in DNR (digital noise reduction)
WDR	Levels 1-8• color: 100 dB
WDR	• B/W: 110 dB
AGC (auto gain control)	2X, 4X, 8X, 16X, 32X, 64X
IRIS	Auto, DC drive
Auto Exposure	Level ±5
Image Rotation	Flip, Mirror, and 180° rotation
Image Setting	Manual tuning with saturation, sharpness, and contrast
Black Level Control	High, Medium, Low
Video
Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Output	via Ethernet
Video Streams	3, H.264, or MJPEG independent video streams
Video Viewing	• DynaStream™ support for changing the video frame rate automatically
	• 3 privacy mask areas provided
	• Adjustable image size and quality
	• Timestamp and text overlay
	• Maximum of 5 simultaneous unicast connections, 50 multicast clients
	• RO
Video Resolution and fps (frames per second)
Audio
Audio Inputs	1 line-in with 2-pin terminal block connector
Audio Outputs	1 line-out with 2-pin terminal block connector
Audio Format	Mono, PCM (G.711)
Network
Protocols	TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS, SNMPv1/v2c/v3, DDNS, Modbus/TCP, 802.1X, SSH/HTTPS
Ethernet	1 10/100BaseT(X) Ethernet port, RJ45 connector
Local Storage
SD Socket	Standard SD slot (SDHC)
GPIO
Digital Inputs	1, max. 8 mA• High: +13 V to +30 V
Digital Inputs	• Low: -30 V to +3 V
Relay Outputs	1, max. 24 VDC @ 1 A
LED Indicators
STAT	Indicates if the system is booted properly or not
Network	10 Mbps or 100 Mbps
Power	Power on/off
DIP Switch	To turn the LED light on/off
Power Requirements
Input Voltage	• VPort 26A-1MP: 12 to 24 VDC or 24 VAC
Input Voltage	• VPort P26A-1MP: PoE, IEEE 802.3af
Input Current	• VPort 26A-1MP: 12 to 24 VDC, 500 mA or 24 VAC, 5.5 W
Input Current	• VPort P26A-1MP: 48 VDC, 180 mA
Power Consumption	• VPort 26A-1MP: 5.5 W
Power Consumption	• VPort P26A-1MP: 5.8 W
Physical Characteristics
Housing	Metal, IP66 rated for rain and dust protection
Vandal Resistance	EN 62262, IK10
Dimensions	Diameter: 149 mm (5.86 in)
Dimensions	Height: 120 mm (4.72 in)
Weight	1.39 kg (3.06 lb)
Installation	Surface mounting (standard), outdoor mounting with optional accessories
Alarms
Intelligent Video	Tamper alarm
Video Motion Detection	Includes sensitivity settings
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers and CGI events for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer	24 MB video buffer for JPEG snapshot images
Security
Password	User level password protection
Filtering	By IP address
Authentication	802.1X
Encryption	HTTPS, SSH
Environmental Limits
Operating Temperature	Standard models: -40 to 50°C (-40 to 122°F )
Operating Temperature	Wide temp. models: -40 to 75°C (-40 to 167°F )
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Vibration	IEC 60068-2-6, 2 to 13.2 Hz: 2 mm (peak-peak); 13.2 to 100 Hz: 0.7g;
	1.50 hrs/axis
	IEC 60068-2-6, 3 to 9 Hz: 7 mm (peak-peak); 9 to 150 Hz: 1.0g;
	1.86 hrs/axis
Shock	IEC 60068-2-27, 20g/11ms
Altitude	Up to 2000 m
Note	Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
Safety	UL 60950-1
Rail Traffic	EN50121-4: 2006 (VPort 26A-1MP series)
EMI	CISPR 22, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
	IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
	IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
	IEC 61000-4-5 Surge: Power 2 kV; Signal: 2 kV
	IEC 61000-4-6 CS: 10 V
	IEC 61000-4-8
