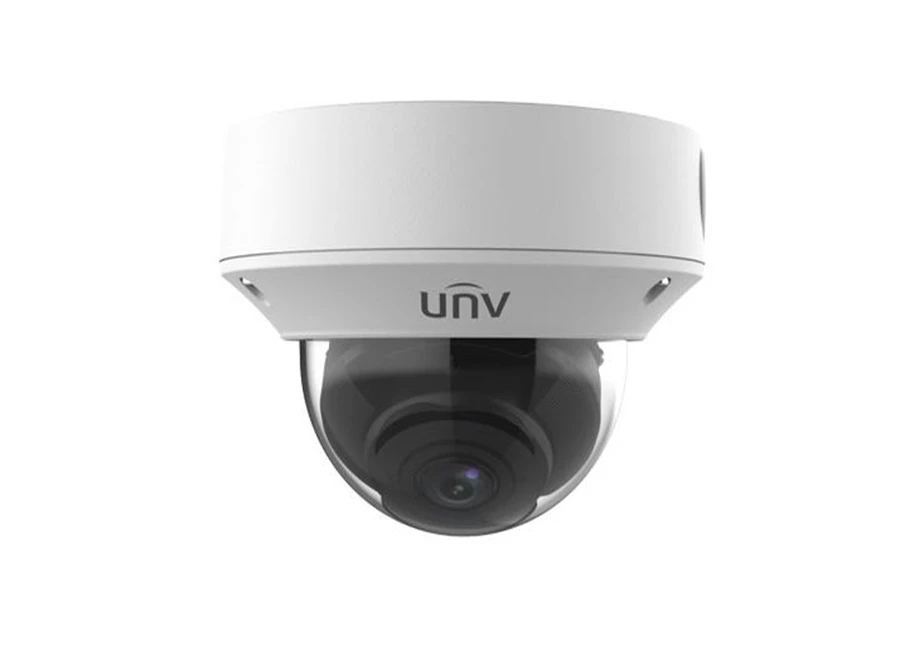

Uniview IPC3234SA DZK IP Dome Kamera
Özellikler
Teknik Özellikler
| IPC3234SA-DZK | |||||||
| Camera | |||||||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens | ||||||
| Iris | Auto aperture | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 42-180 | 16.08.1972 | 8.04.1936 | 4.2 | |||
| Angle of View (H) | 35.6°~107.9° | ||||||
| Angle of View (V) | 20.4°~75.4° | ||||||
| Angle of View (O) | 43.8°~140.3° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0°~355° | Tilt: 0°~68° | Rotate: 0°~355 | ||||
| 30Min. Illumination | Colour:0.0005lux (F1.2, AGC ON) | ||||||
| 0 lux with IR | |||||||
| WDR | 120dB | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| Frame Rate | 4MP(2688*1520),Max 30fps | ||||||
| 9:16 corridor mode | Supported | ||||||
| ROI | Supported | ||||||
| Video stream | Triple streams | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Supported | ||||||
| Smart | |||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711U,G.711A | ||||||
| Voice intercom | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||
| Network | |||||||
| Protocols | L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,DNS,DDNS,NTP,FTP,UPnP,HTTP,SNMP,SIP | ||||||
| Compatible Integration | ONVIF, IMOS | ||||||
| Interface | |||||||
| Audio I/O | Audio cable | ||||||
| 1.1 | |||||||
| Alarm I/O | 1.1 | ||||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||||||
| General | |||||||
| Power | AC24V±25%, DC12V(±25%), PoE(IEEE 802.3af) | ||||||
| Power consumption: 4.5W ~10W | |||||||
| Support reverse polarity protection, Overvoltage and overcurrent protection , Input short circuit protection | |||||||
| Dimensions (Ø x H) | Φ148 x 111.3mm(Φ5.8’’ x 4.4’’) | ||||||
| Weight | 0.96kg(2.12lb) | ||||||
| Working Environment | -30℃~60℃(-22°F ~ 140°F), ≤95%RH | ||||||
| IR fill-in light | 40m (131 ft) | ||||||
| Vandal Resistant | IK10 | ||||||
| Ingress Protection | IP67 | ||||||
Uniview IPC3234SA DZK IP Dome Kamera Pdf Dosyası796.12 KB
Teknik Kısa
Çözünürlük : 4MP
Irled : Var
