Açıklama

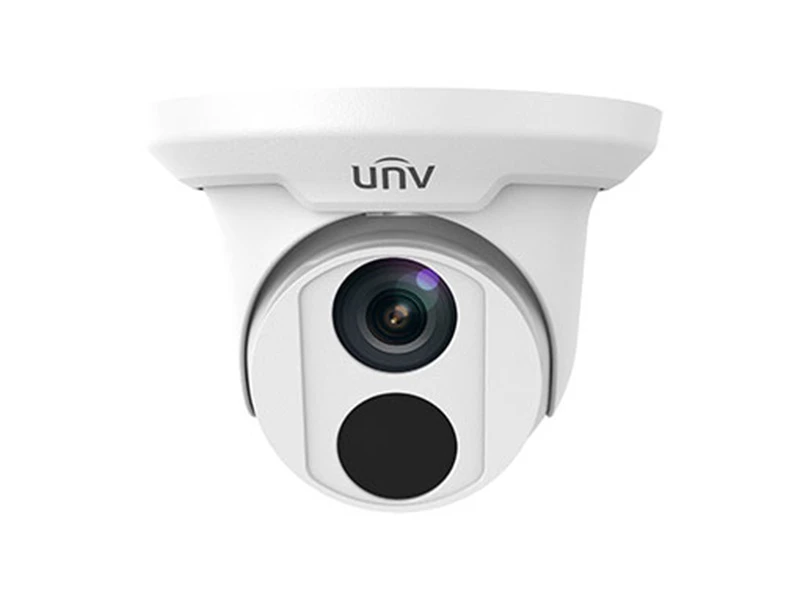

Uniview IPC3615LR3 PF28 D IP Dome Kamera
Özellikler
Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 3D DNR (Digital Noise Reduction)
Network
- ONVIF Conformance
- Support PoE power supply
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Teknik Özellikler
IPC3615LR3-PF28-D | IPC3615LR3-PF40-D | |||||
| Camera | ||||||
| Sensor | 1/2.7", 5.0 megapixel,progressive scan, CMOS | |||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |
| 2.8mm | 42 | 16.8 | 8.4 | 4.2 | ||
| 4.0mm | 60 | 24 | 12 | 6.1 | ||
| Angle of view(H) | 105.3° | 79.7° | ||||
| Angle of View (V) | 69.5° | 51.8° | ||||
| Angle of View (O) | 136.9° | 98.0° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~75° | ||||
| Min. Illumination | Colour: 0.01 Lux (F2.0, AGC ON) | |||||
| 0 Lux with IR | ||||||
| IR Range | Up to 30m (98 ft)IR range | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Noise Reduction | 2D/3D | |||||
| S/N | >52dB | |||||
| WDR | DWDR | |||||
| Video | ||||||
| Max. Resolution | 2592*1944 | |||||
| Video Compression | ||||||
| Frame Rate | Main Stream:5MP (2592*1944):Max. 15 fps; | |||||
Sub Stream:720P (1280*720):Max.20 fps; | ||||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 8 areas | |||||
| ROI | Up to 2 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Network | ||||||
| Protocols | ||||||
| Compatible Integration | ONVIF(Profile S),API | |||||
| Interface | ||||||
| Network | 10/100M Base-TX Ethernet | |||||
| General | ||||||
| Power | 12 V DC±25%,PoE (IEEE802.3 af) | |||||
| Power consumption: Max 4W | ||||||
| Dimensions (Ø x H) | Φ118x 96 mm (Φ4.6” x 3.8”) | |||||
| Weight | 0.35kg (0.77lb) | |||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F),Humidity :10%~90% RH(non-condensing) | |||||
| Ingress Protection | IP67 | |||||
Uniview IPC3615LR3 PF28 D IP Dome Kamera Pdf Dosyası851.71 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 5MP
