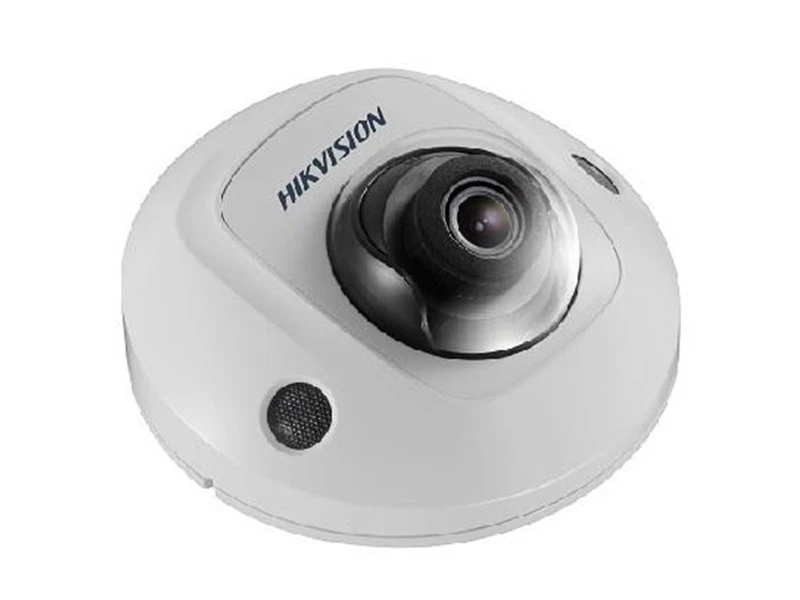

Hikvision DS 2XM6736FWD ISM Mobil IP Kamera

Özellikler

1/3” Progressive Scan CMOS
2304 × 1296 @ 30fps
2.0/2.8/4/6/8 mm fixed lens
Three streams
120dB WDR
3D DNR
4 behavior analyses and face detection
Audio and alarm I/O (-S)
Smart encoding: low bit rate, low latency
ROI
IP67, IK08
H.265, H.265+

Teknik Özellikler

Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Slow shutter	Yes
Lens	2.0/2.8/4/6/8 mm fixed lens
Lens Mount	M12
Adjustment Range	Pan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
Day& Night	IR Cut Filter
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.265/H.264/MJPEG
H.264 code profile	Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams	Yes
Max. Image Resolution	2304 × 1296
Sub Stream	H.265/H.264/MJPEG
	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	H.265/H.264
	50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
	60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement	BLC, 3D DNR
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping	No
BLC	Support
3D DNR	Yes
ROI	Yes
Picture Overlay	No
Day/Night Switch	Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
	mask, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
Audio	With –S model: 1 input (line in), 1 output
Alarm	With -S model: 1 input, 1 output (up to 12VDC, 30mA)
Alarm Input	1
Alarm Output	1
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Audio
Environment Noise Filtering	Support(-S)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Recognition	Face Detection
General
IR Range	up to 30 m
Operation Condition	-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption	12 V DC ± 25%, 0.5 A, max. 6 W
Power Consumption	PoE: (802.3af,36V-57V), 0.2A to 0.13A, Max:7.5W
Impact Protection	IK08 Protection Level
Weather Proof	IP67
Dimensions	Camera: Φ 110 mm × 57.4 mm (4.3″ × 2.3″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″)
Dimensions	With package: 60 mm × 100 mm × 250 mm (2.4″ × 4.0″ × 9.8″)
Weight	Camera: Approx. 580 g (1.3 lb.)
Weight	With package: 860 g (1.9 lb)
