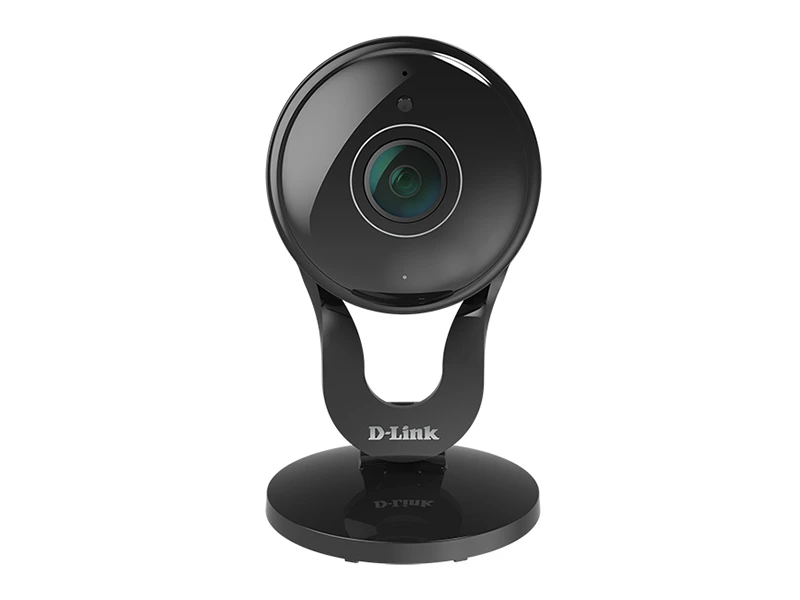

D-Link DCS 2530L Panoramik IP Kamera
Teknik Özellikler
| Camera Hardware Profile |
| • 1/3 2 Megapixel progressive CMOS sensor |
| • Minimum illumination: |
| Color mode: 0.5 lux |
| B/W mode (LEDs off): 0.1 lux |
| B/W mode (LEDs on): 0 lux |
| • Minimum object distance 30 cm |
| • Lens focal length: 1.7 mm |
| • Aperture: F2.5 |
| • Angle of view (16:9): |
| (H) 180° |
| (V) 86° |
| (D) 180° |
| • Stand angle: -15° to 90° |
| Image Features |
| • Configurable image size, quality, frame rate, and bit rate |
| • Wide Dynamic Range (WDR) |
| • 3D filtering |
| • Time stamp and text overlays |
| • Configurable motion detection windows |
| • Configurable privacy mask zones |
| • Configurable exposure time, brightness, saturation, contrast, sharpness. |
| Video Compression |
| • Simultaneous H.264/MJPEG format compression |
| • H.264 multicast streaming |
| • JPEG for still images |
| Video Resolution |
| • 16:9 |
| 1920 x 1080 at up to 15 fps |
| 1280 x 720, 800 x 448, 640 x 360 at up to 30 fps |
| Audio Support |
| • G.711 128 Kbps |
| • AAC 32 Kbps |
| Connectivity |
| • 802.11n/g/b wireless with WPA/WPA2 encryption |
| • Operates on 2.4 GHz band |
| • Maximum data rate of 155 MBps (PHY rate) |
| • micro SD/SDHC/SDXC card Slot, accepts cards up to 128 GB |
| Network Protocols |
| • IPv6, IPv4, ARP, TCP, UDP, ICMP |
| • DHCP client |
| • NTP client (D-Link) |
| • DNS client |
| • DDNS client (D-Link) |
| • SMTP client |
| • HTTP server |
| • UPnP port forwarding |
| • RTP/RTSP/RTCP |
| • HTTPS (for configuration) |
| • ONVIF |
| • Bonjour |
| Security |
| • Administrator and user group protection |
| • Password authentication |
| • HTTP and RTSP digest encryption |
| System Requirements for Web Interface |
| • Operating System: Windows 10/8/7 or Mac OS X 10.7 or higher |
| • Browser: Internet Explorer 8, Firefox 12, Chrome 20, or Safari 6 or higher |
| Event Management |
| • Motion detection |
| • Sound level detection |
| • Scheduled recording |
| • Event notification and uploading of snapshots/video clips via e-mail |
| Remote Management |
| • Configuration interface accessible via web browser |
| Mobile Support |
| • mydlink Lite app for iPhone, iPad, iPod Touch, Android, and Windows |
| • mydlink+ app for iPad and Android |
| Dimensions |
| • 109.6 x 66.0 x 66.0 mm ± 5% |
| Weight |
| • 105 grams ± 5% |
| Power Adapter |
| • Input: 100 to 240 V AC, 50/60 Hz |
| Power Consumption |
| • 4.5 watts ± 5% |
| Temperature |
| • Operating: 0 to 40°C |
| • Storage: -20 to 70°C |
| Humidity |
| • Operating: 20% to 80% non-condensing |
| • Storage: 5% to 95% non-condensing |
| Certifications |
| • CE |
| • CE LVD |
| • FCC |
| • ICES |
Teknik Kısa
Çözünürlük : 2MP (1080P)
