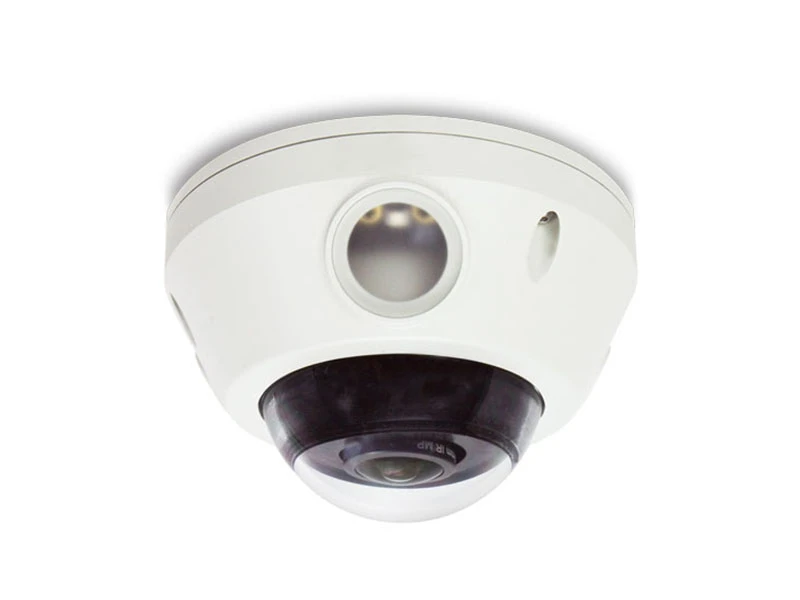

Planet ICA E8550 Panoramik IP Kamera

Özellikler

Camera

5 mega-pixel progressive scan CMOS sensor
1.19 mm fix focal, fixed-iris lens
0.1 lux minimum illumination at F2.0
Maximum resolution 2592 x 1944
Built-in 3 high power IR illuminators, effective up to 15 meters
Removable IR-cut filter for Day & Night function

Video/Audio

H.264/MJPEG video compression
Simultaneous multi-stream support
H.264 high profile, main profile and baseline
Max. resolution of 5 mega-pixel at 15fps
2DNR to improve picture quality at low lux
WDR enhancement function strengthens visibility under extremely bright or dark environments

Network and Configuration

Compliant with IEEE 802.3af PoE interface for flexible deployment
Supports both IPv6 and IPv4 protocols
RTSP, UPnP, Bonjour and HTTPS protocols selectable

Easy Installation & Management

EN50155 certified for mobile surveillance
NEMA 4X housing for rugged applications
ONVIF compliant for interoperability
IK-10, IP68 classification with vandal and weather proof
Micro SD card local video recording supported
Cam viewer E-series software supported – CV7L, CV7-VA, CV7-LP and Mobile app

Teknik Özellikler

Camera
Image Device	5 mega-pixel progressive scan CMOS Sensor
Lens	Fix focal, f1.19 mm/F2.0, fixed-iris
	Mechanical IR-cut filter
	Angle of view: 360 degrees
Min. Illuminator	Color: 0.1 lux @ F2.0 (30 IRE, 2400°K)
Min. Illuminator	B/W: 0 lux (IR on)
IR Illumination LED	Adaptive IR LED x 3, 850nm
IR Illumination LED	Built-in IR illuminators, effective up to 15 meters
Effective Pixels	2592 x 1944 pixels
Electronic Shutter	1/5~1/32000 sec
Video Encoder	H.264, MJPEG
Video Profile	H.264: 2592 x 1944, 2048 x 1536, 1440 x 1080, 1280 x 960, 800 x 600, 640 x 480, 320 x 240
Video Profile	MJPEG: 2592 x 1944, 2048 x 1536, 1440 x 1080, 1280 x 960, 800 x 600, 640 x 480, 320 x 240
Frame Rate	Up to 15fps for all resolutions
Image Setting	Video Flipping/Video Mirroring, Brightness, Contrast, 2DNR, WDR (74dB), Exposure, White Balance, OSD, Privacy Mask (4 regions)
Streaming	Simultaneous dual streams based on two configurations
	Controllable frame rate and bandwidth
	Constant and variable bit rate
Streaming	Simultaneous dual streams based on two configurations
	Controllable frame rate and bandwidth
	Constant and variable bit rate
Audio
Compression	PCM, G.711A, G.711U
Audio Input	Cable with 3.5mm phone jack
Network and Configuration
Network Standard	IEEE 802.3 10BASE-T
Network Standard	IEEE 802.3u 100BASE-TX
Protocol and Service	TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, PLANET DDNS, PLANET Easy DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Security	Password protection, IP address filtering, HTTPS encryption, anonymous login, 802.1X network access control
Users	10 simultaneous unicast users
System Integration
Application Programming Interface	Software Development Kit (SDK) available; ONVIF compliant
Alarm Triggering	Video motion detection (3 regions), sound detection
Alarm Events	Notify control center; change camera settings; command other devices; e-mail notification with snapshots; save video or snapshot to local storage; upload video and snapshot to FTP server
General
Power Supply	PoE Class 2 (IEEE 802.3af)
Power Consumption	PoE: 5.04W (IR On)
Housing	IK-10, IP68 classification with vandal and weather proof, NEMA 4X, EN50155 certification with vibration proof
Operating Temperature	-20 ~ 50 degrees C
Operating Humidity	10 ~ 85% (non-condensing)
Weight	469g
Dimensions (Φ x L)	115 x 70 mm
Emission	CE, FCC
Connectors	10/100 Mbps Ethernet, RJ45
	Reset button
	Micro SDHC/micro SDXC card slot (max. 32GB, class 10)
