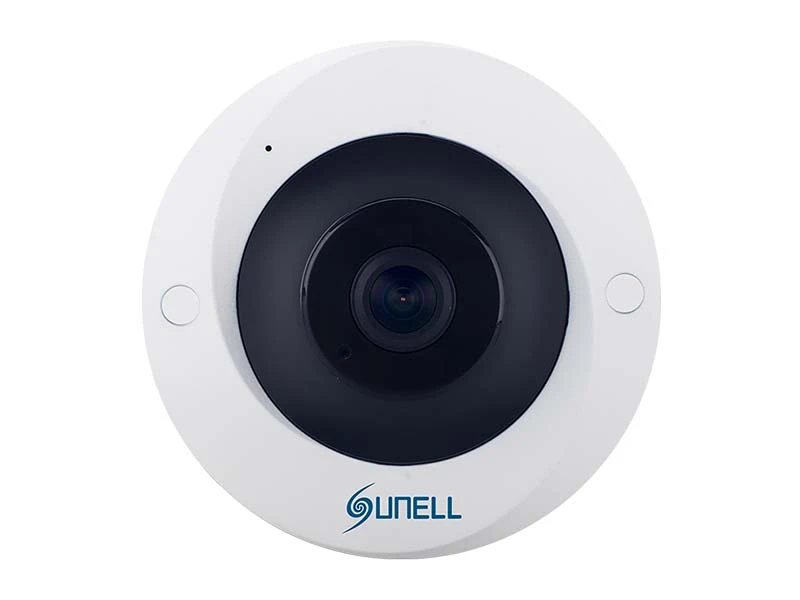

Sunell SN IPD57/50AGDR Panoramik IP Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.5” Progressive Scan CMOS |
| Effective Pixels | 2560(H)×1920 (V) |
| Scanning System | Progressive |
| Electronic Shutter | 1/5-1/20000s |
| Min. illumination | Color:0.05Lux@(F1.2,AGC ON) |
| B/W:0Lux@(IR LED ON) | |
| S/N Ratio | 55dB |
| IR Range | Up to 15m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 3pcs |
| Pan/Tilt/Rotation Range | N/A |
| Lens | |
| Lens Type | Fixed |
| Iris | Fixed Iris |
| Focal Length | 1.5mm |
| F Number | F1.8 |
| Angle of View | 360° |
| Focus Control | Fixed |
| Close Focus Distance | 0.2m |
| Video | |
| Compression | H.265,H.264,MJPEG |
| Max. Resolution | 5MP(2560×1920) |
| Streaming Capability | 3 Streams |
| Stream /Frame Rate | Stream1: 2560×1920/1920×1920/2048×1536/1280×960 @25fps |
| Stream2: VGA /640×640//QVGA @25fps | |
| Stream3: VGA/240×240/QVGA @25fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 500kbps~12000kbps |
| Stream2: 100kbps~6000kbps | |
| Stream3: 100kbps~3000kbps | |
| Day/Night | ICR |
| Image Enhancement | HLC / Defog / WDR (120dB) |
| White Balance | Support |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D DNR |
| Electronic Image Stabilization(EIS) | Support |
| Smart IR | Support |
| Mirror | Support |
| Region of Interest | Support |
| Motion Detection | Support |
| Privacy Masking | Support |
| Audio | |
| Compression | G.711 ,RAW_PCM |
| Bit Rate | 64kbps (G.711), 128kps (RAW_PCM) |
| Network | |
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP |
| Interoperability | ONVIF |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Web Viewer | ≤IE11, Chrome, Firefox |
| Management Software | IMS 3.0 |
| Smart Phone | IOS, Android |
| Intelligence | |
| IVS | Perimeter, Single Virtual Fences, Double Virtual Fences, Loiter, Multi Loiter , Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
| Interface | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio Interface | 1ch Audio In,1ch Audio Out, 1ch Built-in MIC |
| Alarm | N/A |
| RS485 | N/A |
| BNC Output | N/A |
| Reset Button | Support |
| Edge Storage | Micro SD/SDHC/SDXC slot, Max 128GB |
| Electrical | |
| Power Supply | DC12V/POE |
| Power Consumption | 5W(IR LED OFF), 8W（IR LED ON） |
| Operating Temperature | Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F ) |
| Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F) | |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | N/A |
| Certifications | CE / FCC |
| Casing | Metal |
| Dimensions | Φ125×44.5mm |
| Net Weight | 424g |
Sunell SN IPD57/50AGDR Panoramik IP Kamera Pdf Dosyası394.94 KB
Teknik Kısa
Çözünürlük : 5MP
Ses : Var
Depolama : Var
