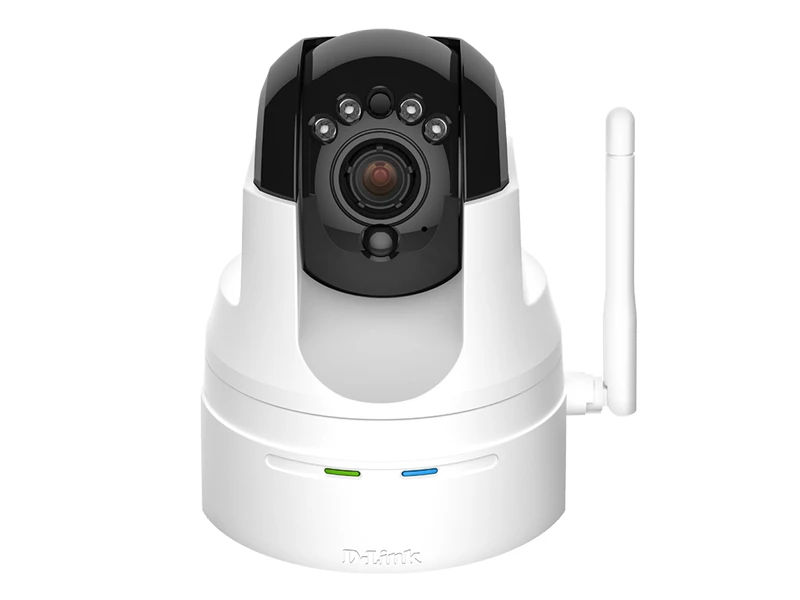

D-Link DCS 5222L IP HD Speed Dome Kamera
Özellikler
Versatile, High-quality Video
- 1/4” Megapixel CMOS sensor captures every detail
- HD recording up to 720P for crisp, clear video
- Up to 10x digital zoom lets you enlarge areas of interest
- Built-in microphone and speaker for 2-way communication
Flexible Surveillance
- Record continuously, based on event triggers, or according to a schedule
- IR illumination for clear pictures in low light
- Pan & Tilt manually or define points of interest for automated monitoring
- Onboard microSD slot for direct recording1
- Manage up to 32 cameras using D-ViewCam™ software
Fast Wireless for Complete Freedom
- High-speed 802.11n wireless for increased speed, range and reliability
- Wireless technology eliminates the need for network cable installation
- Access video feeds on the go, wherever you have internet access
Teknik Özellikler
| Camera Specifications |
| 1/4” Megapixel Progressive CMOS sensor |
| 8 metre IR illumination distance |
| Minimum illumination 0 lux with IR LED on |
| Built-in Infrared-Cut Removable (ICR) Filter module |
| Focal length 2.4 mm |
| Minimum object distance: 200 mm |
| Aperture: F2.0 |
| Exposure Time: 1/7.5 sec. to 1/10,000 sec. |
| Angle of view: |
| (H) 98° |
| (V) 52° |
| (D) 115° |
| Built-in microphone and speaker |
| Video Features |
| Configurable image size, quality, frame rate, and bit rate |
| Time stamp and text overlays |
| Configurable motion detection windows |
| Configurable shutter speed, brightness, saturation, contrast, mirror, flip |
| Video Compression |
| H.264/MJPEG format simultaneous compression |
| H.264 multicast streaming |
| JPEG for still images |
| Video Resolution |
| 16:9 (supports frame rates up to 30 fps) |
| 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 |
| Others (supports frame rates up to 30 fps) |
| 960 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 |
| Pan/Tilt/Zoom |
| Pan Range: -170° to 170° |
| Tilt Range: -20° to 100° |
| Digital Zoom: 10x |
| Manual Pan Speed: 5-80° per second |
| Manual Tilt Speed: 5-80° per second |
| Position Presets: 32 points |
| Audio Compression |
| G.711 |
| AAC |
| Network Protocol Support |
| IPv6 |
| IPv4 |
| TCP/IP |
| UDP |
| ICMP |
| DHCP client |
| NTP client (D-Link) |
| DNS client |
| DDNS client (D-Link) |
| SMTP client |
| FTP client |
| HTTP / HTTPS |
| Samba client |
| PPPoE |
| UPnP port forwarding |
| RTP / RTSP/ RTCP |
| IP filtering |
| QoS |
| CoS |
| Multicast |
| IGMP |
| ONVIF compliant |
| Network Interface |
| IEEE 802.11n/g/b |
| 10/100 BASE-TX Fast Ethernet |
| External Device Interface |
| MicroSD/SDHC Slot1 |
| Single audio input/output port |
| DI/DO Port |
Fiziksel Özellikler
| Dimensions |
| 120 x 103.2 x 130 mm (4.72 x 4.06 x 5.11 inches) |
| Weight |
| 340 grams (0.75 lb) |
| Power Input |
| Input: 5 V DC, 2.5 A |
| Temperature |
| Operating: 0 to 40 °C (32 to 104 °F) |
| Storage: -20 to 70 ºC (-4 to 158 ºF) |
| Humidity |
| Operating: 20% to 80% non-condensing |
| Certifications |
| CE |
| FCC Class B |
| C-Tick |
| CE LVD |
Teknik Kısa
Ses : Var
Çözünürlük : 1MP (720P)
Irled : Var
