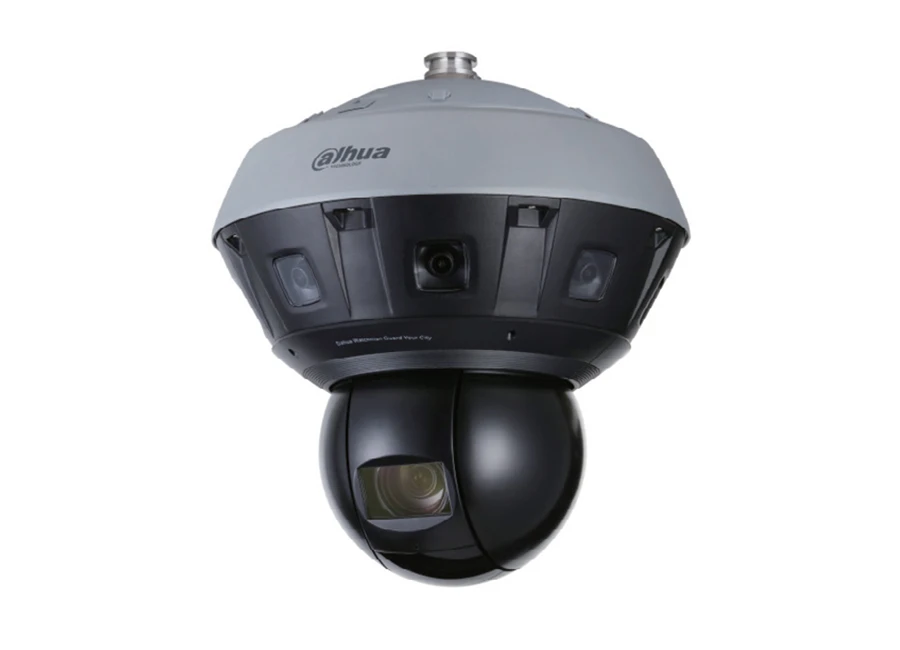

Dahua PSDW81642M-A180-D440 Panoramik PTZ IP Kamera
Özellikler
Teknik Özellikler
| Model code | PSDW81642M-A180-D440 |
| Series | WizMind Series |
| Chip Inch Size | 1/1.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4×4MP resolution |
| Digital (DSP) | Yes |
| Specialist Type | Network |
| Sensitivity Lux | 0 ~ 0.001 lux |
| Electrical Specifications | Voltage: 36 V DC |
| Power Consumption: 33.7W | |
| Motion Activated | Yes |
| Focal Length mm | Panoramic network camera: 2.8 mm / PTZ camera: 5.5 mm–220 mm |
| Mount Type | Wall, Ceiling, Pole |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 5520 x 2700 |
| Network Properties | Image Frame Rate: 25 ~ 30 fps |
| Interface: RJ-45 (10/100/1000 Base-T) | |
| Network Protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP | |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/3 s ~ 1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | > 56 |
| Compression Type | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Physical Specifications | Weight g: 14,700 |
| Dimensions mm: Φ383 x 390 | |
| Environmental Specifications | Protection: IP66, IK10 |
| Operating Temperature oC: -40 ~ +70 C (-40 ~ +158 F) | |
| System Requirements | Web Browser: IE: IE9; IE10; IE11 / Chrome: 42 and earlier / Firefox: 52 and earlier |
| Additional info | Panoramic network camera: Four 1/1.8”4Megapixel progressive CMOS |
| Support 180-degree panoramic view | |
| Starlight+ technology | |
| Support Smart H265+/H264+ encoding | |
| Day/Night (ICR); 3D NR; AWB; AGC; BLC | |
| IR distance up to 400 m | |
| Smart tracking | |
| Tripwire | |
| Intrusion | |
| Crowd map | |
| Vehicle density |
Dahua PSDW81642M-A180-D440 Panoramik PTZ IP Kamera Pdf Dosyası940.03 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 8MP
Irled : Var
