Açıklama

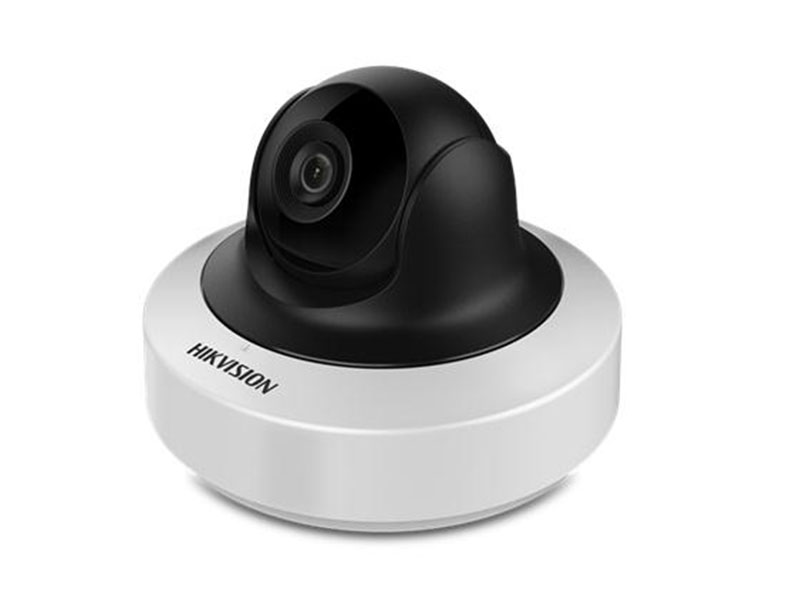

Hikvision DS 2CD2F42FWD IWS IP Speed Dome Kamera

Özellikler

Up to 4 megapixel (2688x1520) high resolution
Full HD1080p video
Dual video streams
120dB Wide Dynamic Range
Pan & tilt rotation
Support on-board storage, up to 128GB
DC12V & PoE
Support H.264+
Up to 10m IR range
Mobile monitoring via EZVIZ or iVMS-4500
l-S: Audio/Alarm IO
-W: Built-in Wi-Fi

Teknik Özellikler

Camera
Image Sensor	1/3" Progressive Scan CMOS
Minimum Aydınlatma	0.01Lux @ F1.2, AGC ON , 0.028Lux @ F2.0, AGC ON, 0 Lux with IR
Objektif Hızı	1/3 s to 1/10,000 s
Lens	2.8mm, 4mm, 6mm @ F2.0
Lens Kurulumu	M12
Ayarlanan Aralık	Motorized Pan: -90° ~ 90°, Tilt: 0° ~ 75°
Day& Night	IR cut filter with auto switch
Geniş Dinamik Aralık	120 dB
Dijtal Gürültü Azaltma	3D DNR
Compression Standard
Video Sıkıştırma	H.264/MJPEG/H.264+
H.264 Türü	Main Profile
Video Bit Hızı	32Kbps~8Mbps
Çift Akış	Yes
Max. Image Resolution	2688 × 1520
Çerçeve Hızı	50Hz: 20fps (2688 x 1520), 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
	60Hz: 20fps (2688 x 1520), 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC	Yes, zone configurable
ROI	Support
Network
Ağ Depolama	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protokoller	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
	mask, Watermark, IP address filtering, Anonymous access
Sistem Uyumluluğu:	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio:	1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
İletişim Arayüzü:	1 RJ45 10M / 100M Ethernet interface
Alarm:	1x alarm I/O *only for –S models
Dahili Depolama:	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu:	Yes
Wi-Fi Şartnamesi (-W)
Kablosuz Standartlar:	IEEE802.11b, 802.11g, 802.11n
Frekans Aralığı:	2.4 GHz ~ 2.4835 GHz
Kanal Bant Genişliği:	20/40MHz Support
Modülasyon Modu:	802.11b: CCK, QPSK, BPSK
	802.11g/n: OFDM
Güvenlik	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Güç İletim	11b: 17±1.5dBm @ 11Mbps
	11g: 14±1.5dBm @ 54Mbps
	11n: 12.5±1.5dBm
Alıcı Hassasiyeti	11b: -90dBm @ 11Mbps (Typical)
	11g: -75dBm @ 54Mpbs (Typical)
	11n: -74dBm (Typical)
İletim Hızı	11b: 11Mbps
	11g: 54Mbps
	11n: up to 150Mbps
Kablosuz Menzil	50m(depend on environment)
General
Çalışma Sıcaklığı	-10 °C ~ 40 °C (14 °F ~ 104 °F)
	Humidity 90% or less (non-condensing)
Power Supply	12 VDC ± 10%, PoE (802.3af)
GÜç Tüketimi	Max. 5W (Max. 7 W with IR cut filter on, max. 9W with pan & tilt rotation)
IR Aralık	10 meters
Boyutlar	Φ119.93 × 87.08mm
Ağırlık	500g (1.1lbs)
NOT	"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support
	the 802.1X protocol.
