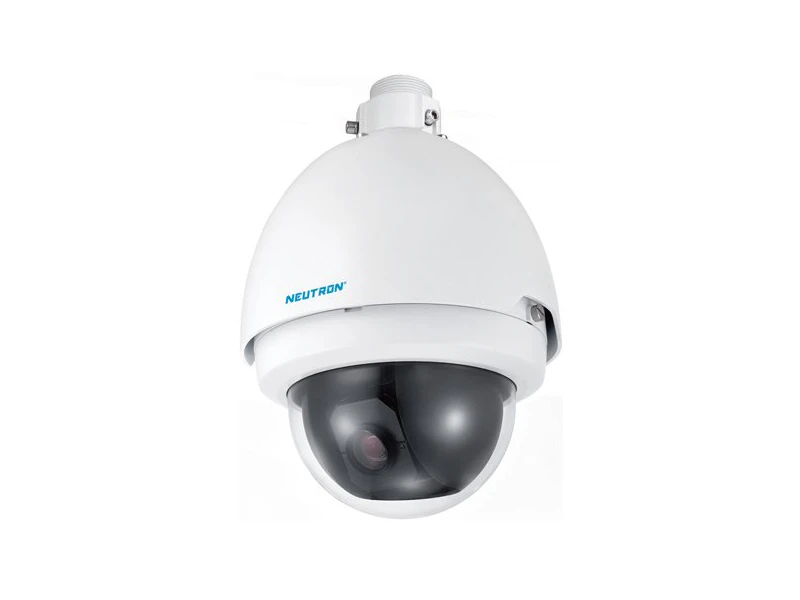

| Camera |
| Image Sensor | 1/3” CCD |
| Effective Pixels | 1280(H) x 960(V) |
| Scanning System | Progressive |
| Electronic ShutterSpeed | 1/3(4) ~ 1/10,000s |
| Min. Illumination | Color: 0.1Lux@F1.6; B/W: 0.01Lux@F1.6 |
| S/N Ratio | More than 50dB |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC |
| Camera Features |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Privacy Masking | Up to 24 areas |
| Digital Zoom | 16x |
| Defog | N.A. |
| Lens |
| Focal Length | 4.7mm~84.6mm |
| (18x Optical zoom) |
| Max Aperture | F1.6~F2.7 |
| Focus Control | Auto / Manual |
| Angle of View | H: 55.2°~3.2° |
| Close Focus Distance | 100mm~1500mm |
| PTZ |
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~ 250°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Preset | 80(DH-SD), 255(Pelco-P/D) |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup | Human-oriented focal length/ speed adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period |
| Time Task | Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
| Video |
| Compression | H.264 / MJPEG |
| Resolution | 1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate | Main Stream | 1.3M(1~15fps), |
| 720P(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) |
| Bit Rate | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
| Audio |
| Compression | G.711a / G.711u(32kbps) / PCM(128kbps) |
| Interface | 1/1 channel In/Out |
| Network |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| ONVIF | ONVIF Profile S |
| Max. User Access | 20 users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot | Micro SD, Max 64GB |
| RS485 | 1 |
| Alarm | 7/2 channel In/Out |
| General |
| Power Supply | AC 24V/3A (±10%) |
| Power Consumption | 15W, 40W(Heater on) |
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 (optional) |
| Dimensions | Φ222(mm) x 322 (mm) |
| Weight | 5.0kg |
