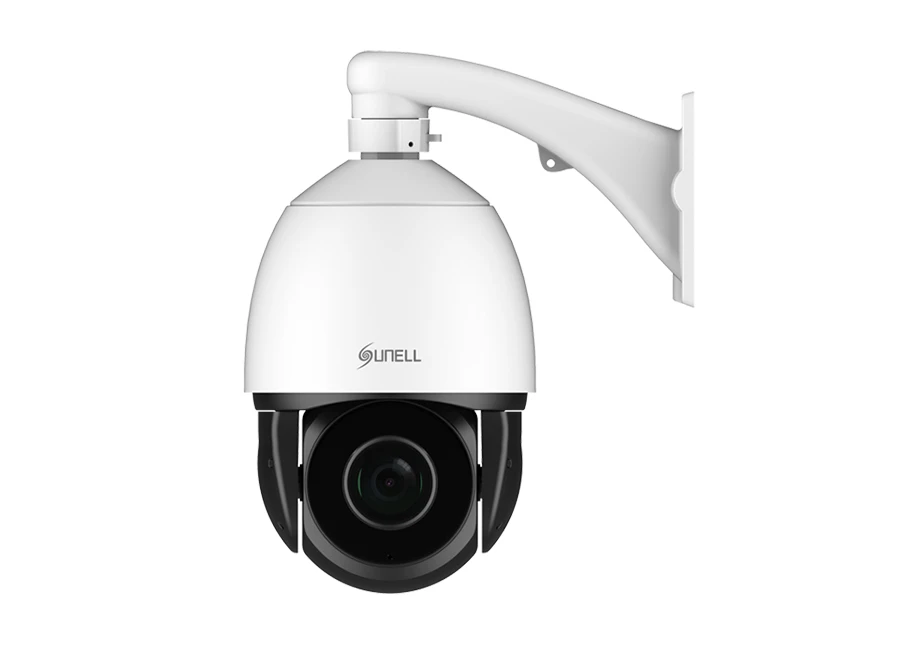

Sunell SN IPS5921MDR Z37 IP PTZ Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2” Progressive Scan CMOS |
| Effective Pixels | 1920(H)×1080(V) |
| Electronic Shutter | Auto/Manual, 1/5-1/20,000s |
| Min. illumination | Color: 0.001Lux @(F1.2,AGC ON) |
| B/W: 0Lux @(IR LED ON) | |
| S/N Ratio | 55dB |
| Day/Night | Auto(ICR) / Day / Night / Timing |
| Wide Dynamic | WDR (120dB) |
| Range | |
| IR Range | Up to 200m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 10pcs |
| Lens | |
| Focal Length | 6~222mm |
| Max. Aperture | F1.5~F4.8 |
| Angle of View | H: 60°~2° |
| Optical Zoom | 37x |
| Digital Zoom | 16x |
| Focus Control | Auto/Manual |
| PTZ | |
| Pan/Tilt Range | Pan: ° ~ 360° endless, Tilt: -10° ~ +90° |
| Manual Control Speed | Pan: 0.1° ~180° /s, Tilt: 0.1° ~90° /s |
| Preset Speed | Pan: 180° /s, Tilt: 90° /s |
| Presets | 400 |
| PTZ Mode | 6 Track, 12 Tour, 12 Scan, |
| Speed Setup | Auto/Manual (0-8) |
| Power up Action | Support |
| Idle Motion | Activate Preset/ Scan/ Tour/ Track if there is no command in the specified period |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Max. Resolution | 1080P(1920×1080) |
| Streaming Capability | 3 Streams |
| Stream / | Stream1: 1920×1080/1280×720 @50/60fps |
| Frame Rate | Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps |
| Stream3: VGA/CIF/QVGA @25/30fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 200kbps~12Mbps |
| Stream2: 100kbps~6Mbps | |
| Stream3: 100kbps~6Mbps | |
| Image Enhancement | HLC / BLC / Anti-shake / Defog / WDR (120dB) |
| White Balance | Auto/Tungsten/Fluorescent/Daylight/Shadow/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Mirror | Support |
| Aisle Mode | Support |
| Region of Interest | Off / On (8 Zone) |
| Motion Detection | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression | G.711, RAW_PCM |
| Bit Rate | 8kbps(G.711), 16kps(RAW_PCM) |
| Network | |
| Protocols: | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
| Interoperability | ONVIF, SDK, CGI |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Edge Storage | NAS |
| Local PC for instant recording | |
| Micro SD card 128GB | |
| Web Viewer | <IE11, Chrome, Firefox |
| Management Software | SunView |
| Smart Phone | IOS, Android |
| Intelligence | |
| Auto Tracking | Support |
| IVS | Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
| Interface | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio | 1ch Input, 1ch Output |
| Alarm | 7ch Input, 2ch Output |
| RS485 | Support |
| CVBS Output | Support |
| Reset Button | Yes (Built-in) |
| Electrical | |
| Power Supply | AC24V/Hi-POE (Adapter optional) |
| Power Consumption | Less than 40W |
| Operating Temperature | Starting Temperature: -40°C ~ 60°C (-40°F ~ 140 °F) |
| Working Temperature:-55°C ~ 60°C (-67°F ~ 140 °F) | |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP66, TVS4000V |
| Certifications | CE/FCC |
| Casing | Metal |
| Dimensions | Φ226×362.8mm |
| Net Weight | 5.2Kg |
Sunell SN IPS5921MDR Z37 IP PTZ Kamera Pdf Dosyası587.84 KB
Sunell SN IPS5921MDR Z37 IP PTZ Kamera Kullanım Kılavuzu(ing) Pdf Dosyası2.04 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
Irled : Var
