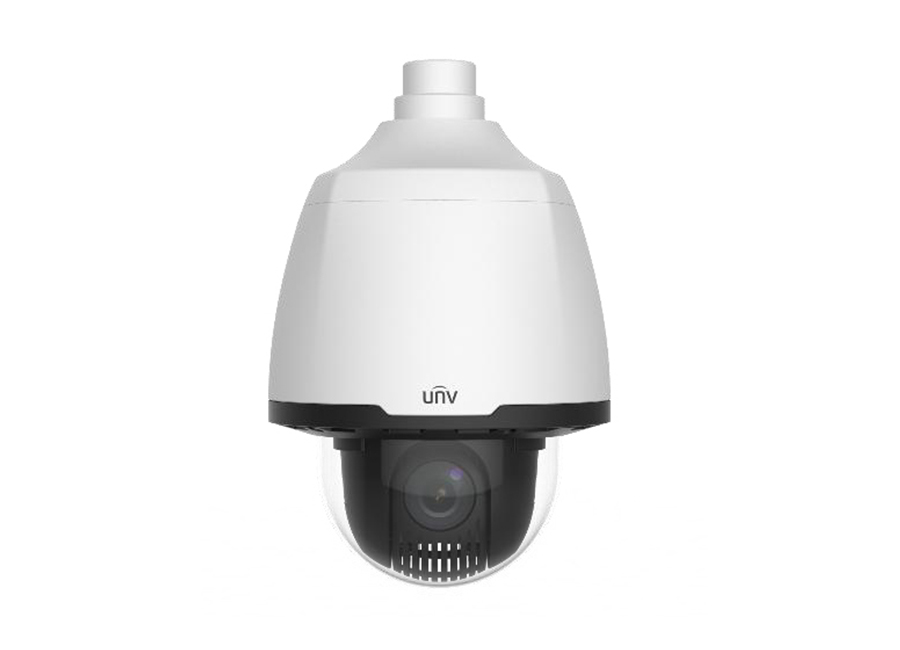

Uniview IPC6222E X33UP IP PTZ Dome Kamera

Özellikler

1/2.8" progressive scan CMOS
Up to 1920 x 1080 resolution, 30fps
33x optical zoom (4.5~148.5mm)
Ultra 265,H.265,ONVIF
Alarm I/O,Audio I/O
AC24V,DC24V,16W
–30°C ~ +70°C
IP66
IK10

Teknik Özellikler

Camera
Sensor	1/2.8", progressive scan, 2.0 megapixel, CMOS
Lens	4.5~ 148.5mm, AF automatic focusing and motorized zoom lens
Digital Zoom	16
Optical Zoom	33
DORI Distance	Lens	Detect (m)	Observe(m)	Recognize(m)	Identify(m)
	4.5mm	69.8	27.9	14	7.1
	148.5mm	2094.8	837.9	419	209.5
Angle of View (H)	62.67°~2.82°
Angle of View (V)	38.4°~1.3°
Angle of View (O)	77.1°~3.3°
Shutter	Auto/Manual; shutter time: 1 ~ 1/100000 s
Minimum Illumination	Colour: 0.001 lux (F1.5, AGC ON)
	B/W: 0.0001 lux(F1.5, AGC ON)
Iris	Auto/Manual; F1.5 ~ F4.0
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:2MP (1920×1080):Max. 30 fps;
	Sub Stream:2MP (1920×1080):Max. 30 fps;
	Third Stream: D1 (720×576): Max. 30 fps
HLC	Supported
BLC	Supported
EIS	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection, auto tracking
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
auto tracking	Tracking the specified target
Recognition	Face detection、Audio detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering,Tampering Alarm, Alarm input, Alarm output,Access Policy, ARP Protection, RTSP Authentication,User Authentication
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP,DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS,NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration	ONVIF(Profile S, Profile G), API
Pan & Tilt
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 400°/s
	Preset speed:400°/s
Tilt Range	1° ~ +90°
Tilt Speed	0.1° ~ 240°/s
	Preset speed: 240°/s
Number of Presets	1024
Patrol	Preset patrol, route patrol, recorded patrol
Home Position	Supported
Interface
Audio I/O	Audio cable
	1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
	1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	2.Oca
Serial Port	1 RS485
Network	1 RJ45 10M/100M Base-TX Ethernet
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power	24 V AC±25%, 24 V DC±25%, PoE (IEEE802.3 at)
	Power consumption: MAX 16W
Dimensions(ØxH)	Φ218mm×298mm(Φ8.6” x 11.7”)
Weight	4.2 kg (9.3 lb)
Working Environment	–30°C ~ +70°C (-31°F ~ 158°F), Humidity:10%~ 90% RH(non-condensing)
Ingress Protection	IP66
Vandal Resistant	IK10
Reset Button	Supported
