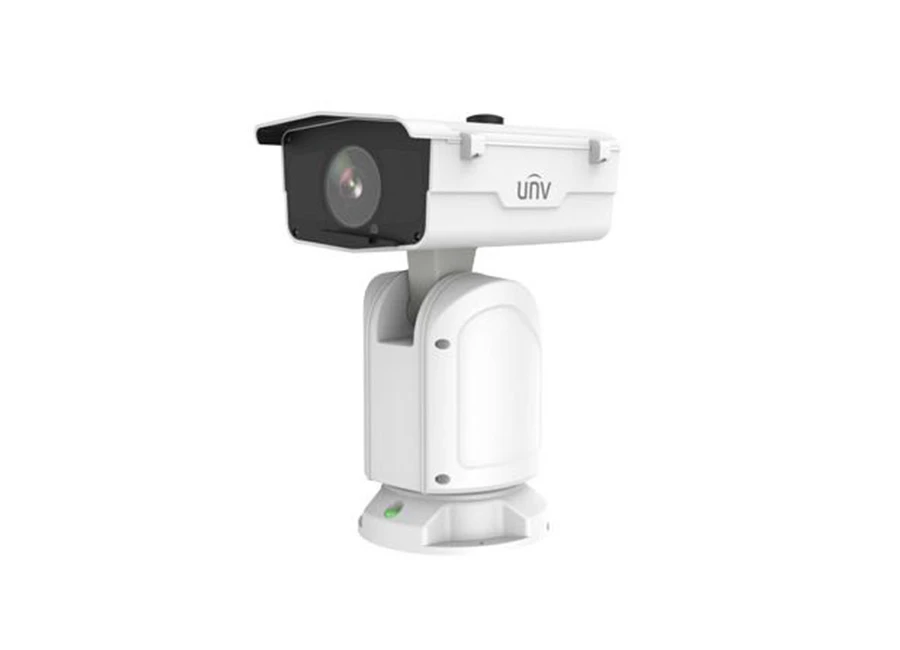

Uniview IPC7622ER X44U IR IP PTZ Kamera

Özellikler

Optics

44X Optical Zoom(5~220mm) with wider and farther
Starlight illumination
Support Optical defog, Self-adaptive defog
Day/night functionality
Smart IR , up to 300 m (984 ft) IR distance
Gyroscope stabilization for stable picture
Up to 120 dB Optical WDR(Wide Dynamic Range)
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)

Compression

H.265, H.264, MJPEG
Support 1080P@60fps，which has the smoother motion image
Triple streams
ROI (Region of Interest)

Network

ONVIF Conformance

Structure

Intelligent temperature control technology
Intelligent Wiper function
Embedded gradienter to ensure the horizontal position while installation
Wide temperature range: -40°C to 70°C (-40°F to 158°F)
Power supply: DC 48V±25%,DC 24V±15%(DC20V~DC60V), AC 24V±25%
Support 1/1 audio in/out, 7/2 alarm in/out ,1 Serial port RS485,1 BNC
Support up to 256G Micro SD card
Ingress Protection: IP66

Teknik Özellikler

IPC7622ER	IPC7622ER-X44U
Camera
Sensor	1/2.8" progressive scan, 2.0megapixel, CMOS
Lens	5~220mm，AF automatic focusing and motorized zoom lens
Digital Zoom	16
Optical Zoom	44
DORI Distance	Lens	Detect(m)	Observe(m)	Recognize(m)	Identify(m)
	5mm	77.6	31.0	15.May	7.Ağu
	220mm	3413.8	1365.5	682.8	341.4
Angle of View (H)	60.6 ~ 1.83°
Angle of View (V)	34.8°~0.8°
Angle of View (O)	75.7°~1.8°
Shutter	Auto/Manual, shutter time: 1s ~ 1/100000 s
Minimum Illumination	0.002lux (F1.2，AGC ON，Colour)，
	0 lux with IR
Iris	F1.2 ~ F3.5
Day/Night	IR-cut filter with auto switch(ICR)
Digital noise reduction	2D/3D DNR
S/N	>52 dB
Defog	Optical Defog
WDR	120dB
IR Distance	300m(984ft)
Video
Video Compression	H.265, H.264, MJPEG
Frame Rate	Main Stream:2MP (1920×1080)@60fps
	Sub Stream:2MP(1920×1080)@30fps;
	Third Stream:D1(720×576)@30fps
HLC	Supported
BLC	Supported
Gyroscope	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion detection, Cross line detection, Motion detection
Exception Detection And Statistics	Object Moving, Object Left
Recognition	Face detection、Audio detection
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Two way audio	Supported
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4、HTTP、HTTPS、SSL/TLS、FTP、SMTP、SNMPV1/V2/V3(MIB-Ⅱ)、DNS、NTP、RTSP、RTP、TCP、UDP、IGMP、RTCP、ICMP、DHCP、ARP
Compatible Integration	ONVIF(Profile S, Profile G，Profile T),API
Pan & Tilt
Pan Range	360°
Pan Speed	0.1°/s ~140°/s
	Preset speed: 140°/s
Tilt Range	–90° ~ +45°
Tilt Speed	0.1° ~50°/s
	Preset speed:50°/s
Number of Presets	1024
Patrol	Preset patrol, route patrol, recorded patrol
Power-off memory	Supported
Keep watch	Supported
Interface
Audio I/O	1 Input: impedance 35 kΩ; amplitude2 V [p-p]
	1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	7.2
Serial Port	1 RS485
Network	10M/100M/1000M Base-TX Ethernet
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power	DC 48V±25%/DC 24V±15% (DC20V~DC60V)
	AC 24V±25%
	Power consumption:Max 87.8W
Dimensions (Ø x H)	280.1mmx364.9mm x519.6mm (Φ11.0” x 14.4” x20.5”)
Weight	13.98kg(30.8lb)
Working Environment	–40°C ~ +70°C (-40°F ~ 158°F), Humidity :≤95% RH(non-condensing)
Ingress Protection	IP66
