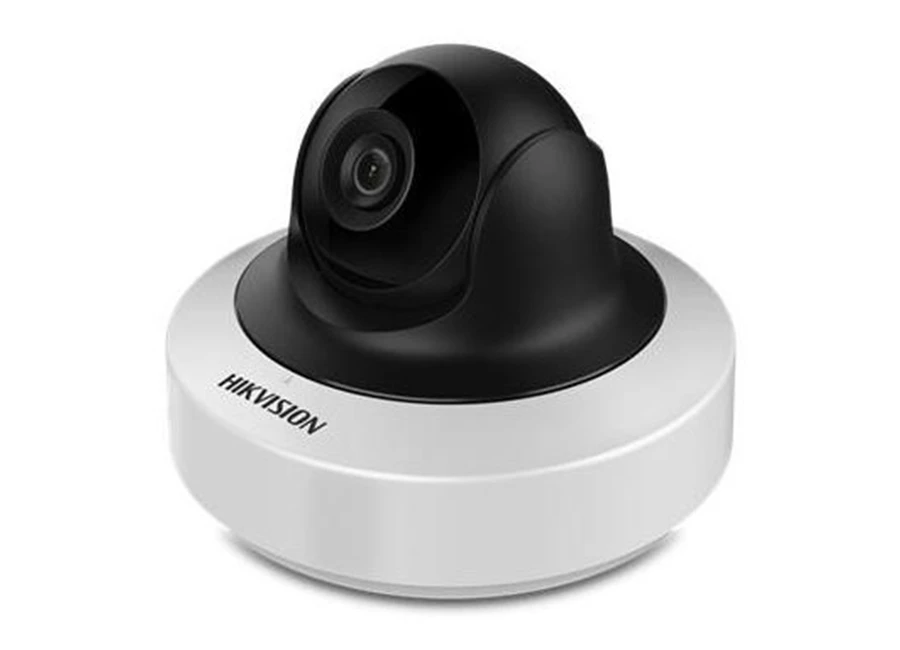

Hikvision DS 2CD2F22FWD I IP Mini PT Kamera
Özellikler
- Up to 2 megapixel high resolution
- Full HD1080p video
- Dual stream
- 120dB Wide Dynamic Range
- Pan & tilt rotation
- Support on-board storage, up to 128GB
- DC12V & PoE
- Support H.264+
- Up to 10m IR range
- -S: Audio/Alarm IO
- -W: Built-in Wi-Fi
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Lens | 2.8mm, 4mm, 6mm @ F2.0 angle of view: 114°(2.8mm), 88°(4mm), 55°(6mm) |
| Lens Mount | M12 |
| Adjustment Range | Pan: -90° ~ 90°, Tilt: 0° ~ 75° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG/H.264+ |
| H.264 code profile | Main Profile |
| Video bit rate | 32Kbps~16Mbps |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Frame Rate | 50Hz:Main stream:25fps(1920×1080),25fps(1280×960),25fps(1280×720)Sub stream:25fps(352×288),25fps(640×360) |
| 60Hz: Main stream:30fps (1920×1080), 30fps(1280×960), 30fps(1280×720) Sub stream: 30fps(352×240),30fps(640×360) | |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| ROI | Support |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger | Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering | |
| System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
| Interface | |
| Audio | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Alarm | 1x alarm I/O *only for –S models |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Wi-Fi Specification (-W) | |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Modulation Mode | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM | |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Wireless Range | 50m(depend on environment) |
| General | |
| Operating Conditions | -10 °C ~ 40 °C (14 °F ~ 104 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | Max. 5W (Max. 7 W with IR cut filter on, max. 9W with pan & tilt rotation) |
| IR Range | 10 meters |
| Dimensions | Φ119.93 × 87.08mm |
| Weight | 500g (1.1lbs) |
Hikvision DS 2CD2F22FWD I IP Mini PT Kamera Pdf Dosyası814.13 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
