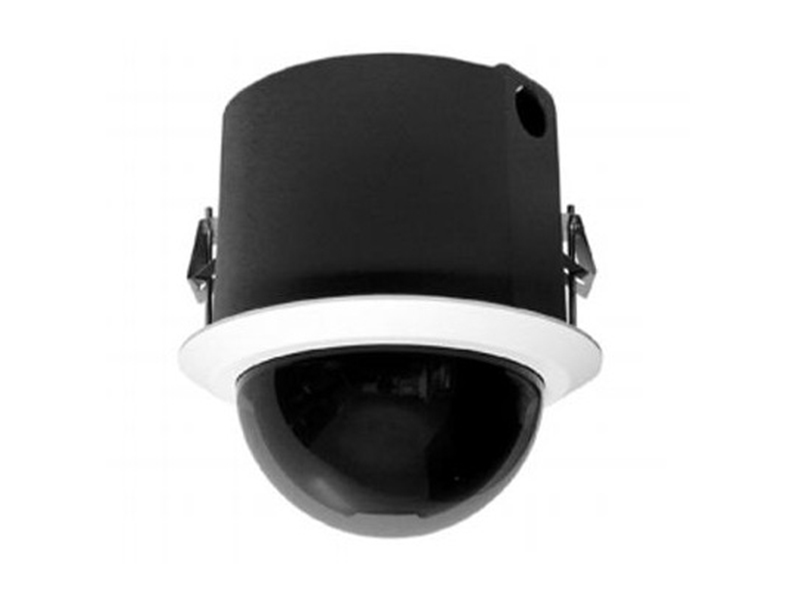

Pelco S6220 FW1 IP PTZ Speed Dome Kamera

SureVision 3.0 Technology, Including:
– 130 dB Wide Dynamic Range (WDR)
– Advanced Low Light Down to 0.03 LUX on Select Models
– Anti-Bloom Technology
– 3D Noise Filtering
– Enhanced Tone Mapping
Up to Full HD 1080p
Up to 60 Images per Second (ips)
Power over Ethernet (HPoE and PoE+), 24 VAC, 24 VDC
Three Automatic Defog Options
Electronic Image Stabilization (EIS)
Built-in Analytics Suite
Vandal Resistant IK10 Clear Bubble
Up to 32 GB Edge Storage with Micro SD Card
Compatible with Pelco and Third-Party Video Systems
ONVIF Profile S and Profile G Conformant
Single Back Box for Suspended or Hard Ceiling Applications with Light Gray Trim Ring, RAL9002
Requires 13.35 cm (5.25 in.) Space Above Ceiling and 8.25 cm (3.25 in.) Below
Minimum Ceiling Thickness 1.27 cm (0.50 in.); Maximum 4.45 cm (1.75 in.)
Aluminum Construction, IK10 Rated Nylon Bubble
Suitable for Use in Environmental Air Handling Spaces
° to 50°C (32° to 122°F) Sustained Operating Temperature

Çözünürlük : 2MP (1080P)

SKU	S6220-FW1
Manufacturer	Pelco
Features	Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	Non Infrared
Resolution	2 Megapixel
Lens Type	Motorized Zoom
Lens Size	20X
Mount Type	In-Ceiling
Compression Method	H.264, M-JPEG
Durability	Indoor, Vandal Resistant
Voltage	24vDC, 24vAC, PoE
Electronic Shutter	1/1 ~ 1/10,000 sec
Image Device	1/2.8-inch Type Exmor CMOS Sensor
Minimum Scene Illumination	Color (33 ms): 0.20 lux, Color (250 ms): 0.025 lux, Mono (33 ms): 0.06 lux, Mono (250 ms): 0.008 lux
Operating Humidity	10 to 90% RH (noncondensing)
Operating Temperature	° to 50°C (32° to 122°F)
Power Consumption	24vAC : 24 VA (without heater and blower); 81 VA (with heater and blower) , 24vDC : 1 VA (without heater and blower); 3 VA (with heater and blower)
Protocols	TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6*, SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP)
S/N Ratio	>50dB
Angle of View	55.4° (wide) ~ 2.9° (tele)
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Motion Detection Tracking	Yes
Wide Dynamic Range	Yes
ONVIF	Yes
Digital Zoom	Yes
