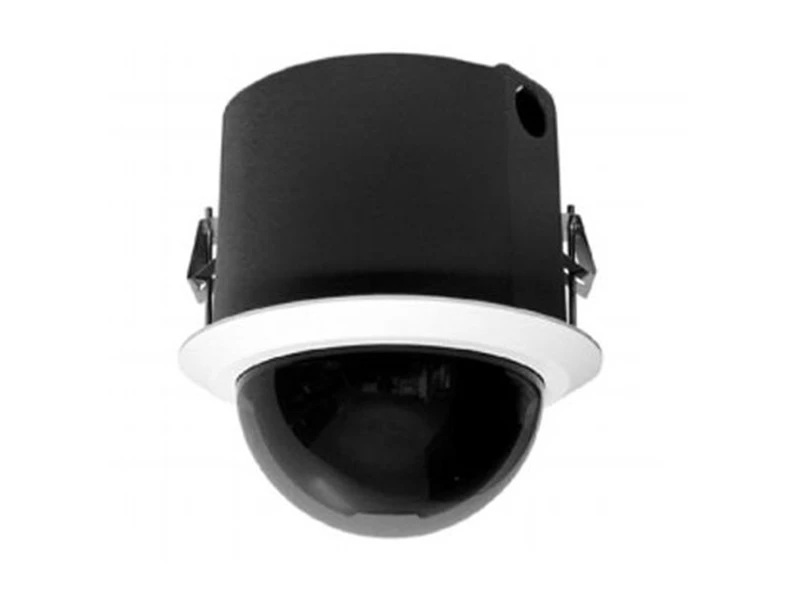

Pelco S6230 YB1 IP PTZ Speed Dome Kamera
Özellikler
- SureVision 3.0 Technology, Including:
– 130 dB Wide Dynamic Range (WDR)
– Advanced Low Light Down to 0.03 LUX on Select Models
– Anti-Bloom Technology
– 3D Noise Filtering
– Enhanced Tone Mapping - Up to Full HD 1080p
- Up to 60 Images per Second (ips)
- Power over Ethernet (HPoE and PoE+), 24 VAC, 24 VDC
- Three Automatic Defog Options
- Electronic Image Stabilization (EIS)
- Built-in Analytics Suite
- Vandal Resistant IK10 Clear Bubble
- Up to 32 GB Edge Storage with Micro SD Card
- Compatible with Pelco and Third-Party Video Systems
- ONVIF Profile S and Profile G Conformant
- Single Back Box, RAL9011, for Hard Ceiling Applications
- Requires 11.18 cm (4.40 in.) Space Above Ceiling;10.92 cm (4.30 in.) Below
- Type 4X and IP66
- Includes Heater and Blower
- Minimum Ceiling Thickness 1.27 cm (0.50 in.); Maximum 4.45 cm (1.75 in.)
- Aluminum Construction, IK10 Rated Nylon Bubble
- –45° to 50°C (–50° to 122°F) Sustained Operating Temperature
Teknik Özellikler
| SKU | S6230-YB1 |
| Manufacturer | Pelco |
| Features | Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | In-Ceiling |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Image Device | 1/2.8-inch Type Exmor CMOS Sensor |
| Minimum Scene Illumination | Color (33 ms): 0.20 lux, Color (250 ms): 0.025 lux, Mono (33 ms): 0.06 lux, Mono (250 ms): 0.008 lux |
| Operating Humidity | 10 to 100% RH (condensing) |
| Operating Temperature | –45° to 50°C (–50° to 122°F) |
| Power Consumption | 24vAC : 24 VA (without heater and blower); 81 VA (with heater and blower) , 24vDC : 1 VA (without heater and blower); 3 VA (with heater and blower) , PoE+ : 18 W (with heater off, blower on) |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6*, SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP) |
| Signal System | NTSC |
| Weatherproof | IP66 |
| Angle of View | 59.5° (wide) ~ 2.1° (tele) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
Pelco S6230 YB1 IP PTZ Speed Dome Kamera Pdf Dosyası904.65 KB
Teknik Kısa
Çözünürlük : 12MP
Depolama : Var
