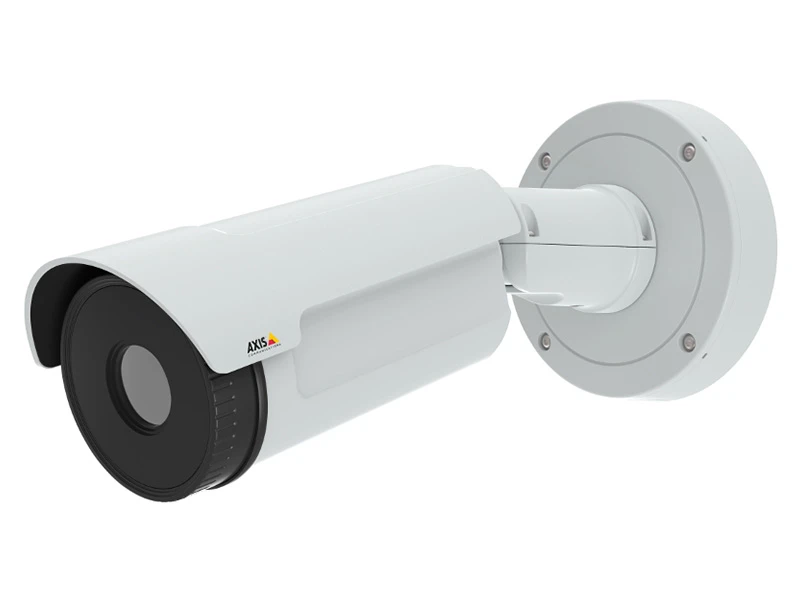

Axis Q2901 E 19MM PT Mount IP Termal Kamera
Özellikler
- Temperature alarm camera for wall and ceiling mount, IP66-rated,
- 336x256 resolution, 8.3 fps, and 17° angle of view.
- Six temperature alarm zones, isothermal palettes and spot temperature.
- It supports ONVIF, H.264, audio, local storage, I/O,
- PoE, shock detection,
- Video Motion Detection 3.0, audio detection and AXIS Camera Application Platform
Teknik Özellikler
| Video Input |
| Audio Support : Yes |
| Audio Support Features : Two-way audio capability |
| Camera Mechanical Design : Fixed |
| Camera Mount Type : Ceiling mount , Wall mount |
| Camera Type : Thermal network camera |
| Color or B&W : Color |
| Connectivity Technology : Wired |
| Day & Night Functionality : Yes |
| Digital Video Format : H.264 , MJPEG , MPEG-4 |
| Features : Active tampering alarm , Audio Detection , Auto gain control , AXIS Video Hosting System (AVHS) , Dehumidifier , Digital image rotation , Heater , Image mirror , microSD/SDHC/SDXC Memory Card slot , Notification picture to E-mail , ONVIFsupport , Password protection , Sharpness control , Shock detection , Sunshield , Text stamp , Thermal sensitivity 50mK , Triple video stream |
| Frame Rate : 8.3 frames per second |
| Max Digital Video Resolution : 336 x 256 |
| Optical Sensor |
| Sensor Pixels Total (H) : 336 |
| Sensor Pixels Total (V) : 256 |
| Networking |
| Network Interface : Ethernet 10Base-T/100Base-TX |
| Network Protocols : ARP , Bonjour , CIFS , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SMB , SMTP , SNMP 1 , SNMP 2c ,SNMP 3 , SOCKS , SSH , SSL , TCP/IP , TLS , UDP/IP , UPnP |
| Cable |
| Connectivity Details Length : 16.4 ft |
| Connectivity Details Type : Network cable |
| Environmental Parameters |
| Humidity Range Operating : 10 - 100% |
| Max Operating Temperature : 140 °F |
| Min Operating Temperature : -40 °F |
| Header |
| Brand : Axis |
| Compatibility : PC |
| Manufacturer : Axis Communications |
| Model : Q2901-E Temperature Alarm Camera (9mm) |
| Packaged Quantity : 1 |
| Product Line : AXIS |
| Lens System |
| Angular Field of View (H, max, degree) : 35 |
| Focal Length Control : Fixed focal |
| Lens Aperture : F/1.25 |
| Min Focal Length : 19 mm |
| Min Focus Distance : 7 ft |
| Miscellaneous |
| Color : White |
| Color Category : White |
| Compliant Standards : AS/NZS , C-Tick , CISPR 22 Class B , EN 50121-4 , EN 50581 , EN 60950-1 , EN 60950-22 , EN 61000-3-2 , EN 61000-3-3 , EN 61000-6-1 , EN 61000-6-2 , EN55022 Class B , EN55024 , FCC Part 15 B , ICES-003 Class B , IEC 60068-2-1 , IEC 60068-2-14 , IEC 60068-2-2 , IEC 60068-2-27 , IEC 60068-2-30 , IEC 60068-2-6 , IEC 60068-2-78 , IEC 60529 IP66 , IEC 60529 IP67 , IEC 60950-1 , IEC 60950-22 , KCC KN22 Class B , KN24 , UL 60950-1 , UL 60950-22 , VCCI Class B ITE |
| Included Accessories : Mounting bracket |
| Service |
| Support Details Full Contract Period : 3 years |
| Support Details Type : Limited warranty |
| Software |
| Type : Drivers & Utilities |
| Video Capture |
| Frame Rate : 8.3 fps |
| Image Resolution : 720 x 576 |
| Dimensions & Weight |
| Depth : 13.5 in |
| Height : 5.7 in |
| Weight : 4.41 lbs |
| Width : 5.7 in |
| Cable Details |
| Form Factor : External |
| Included Qty : 1 |
| CCTV Camera |
| Outdoor : Yes |
| Flash Memory |
| Installed Size : 128 MB |
| Interfaces |
| Connector : RJ-45 |
| Type : LAN/power |
| Power |
| Low Voltage Power : DC 8 - 20 V / AC 20 - 24 V / PoE |
| RAM |
| Installed Size : 256 MB |
| Service & Support |
| Type : 3 years warranty |
Axis Q2901 E 19MM PT Mount IP Termal Kamera Pdf Dosyası180.37 KB
