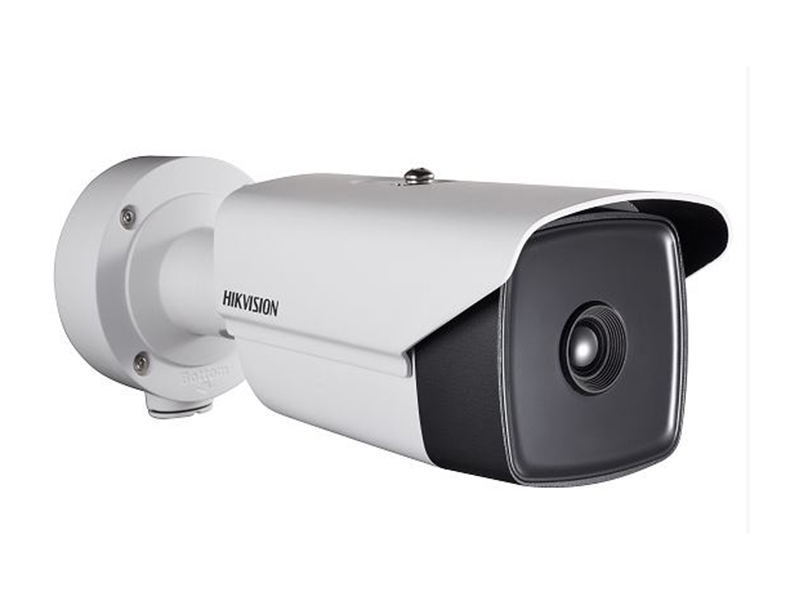

Hikvision DS 2TD2166 25/V IP Termal Bullet Kamera

Özellikler

Smart Function (Thermal Imaging)

Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25°C,F#=1.0)
Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
Reliable temperature exception alarm function
Advanced fire detection algorithm

Thermal Imaging Module Function

640*512 resolution, high sensitivity sensor, support contrast adjustment
Shutter adjustment in various modes
3D DNR, 15 palettes of color adjustable, image detail enhancement
7mm, 10mm,15mm, 25mm,35mm lens are optional

Teknik Özellikler

Thermal Module
Image sensor	Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution	640*512
Detector Pitch	17um
Response Wavebond	8um to 14um
NETD	< 40mk(@25°C,F#=1.0)
Lens (focal length)	25mm
MRAD	0.68 mrad
Field of View	24.55°x 19.75°
Min. Focusing Distance	13m
F number	1.0
Smart Function
VCA	Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA
VCA	rules
Temperature Measurement	Support 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line)
Temperature Range	-20 ° C to 150 ° C (-4 ° C to 302 ° F)
Temperature Accuracy	±8 ° C (14.4 ° F)
Fire Detection	Support 10 fire points
Network
Main Stream	50fps(384 × 288)
Sub Stream	50fps(384 × 288)
Third Stream	50fps(384 × 288)
Video Compression	H.265/H.264/MJPEG, H.265+, H.264+ encoding with Baseline/Main/High Profile
Audio Compression	G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP,RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous live view	Up to 20-ch
User/Host Level	Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures	User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control,
Security Measures	IP address filtering
Integration
Alarm Input	2-ch Inputs (0-5V DC)
Alarm Action	Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email
Alarm Action	linkage
Alarm Outpu	2-ch relay outputs, alarm response actions configurable
Audio Input:	1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10%
Audio Output	Linear Level; Impedance: 600Ω
Communication Interface	Built-in RJ45; 10M/100M Ethernet Interface
Onboard Storage	Built-in Micro SD/SDHC/SDXC Card Slot, Up to 128GB, Support Manual/Alarm Recording
Ethernet	1 RJ45 10M/100M Self-adaptive Ethernet interface
Analog Video Output	1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application Programming	Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
Client	iVMS-4200
Web Browser	IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
General
Power	24 VAC± 25%, 12 VDC± 20%, two-core terminal block PoE (802.3at, class 4)
Power Consumption	24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A, max. 8W (22W with De-icing Heater On),
Power Consumption	PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
Menu Language	English
Working Temperature/ Humidity	From -40 ° C to 65 ° C (-40 ° F to 149 ° F); Humidity: 90% or Less
Protection Level	IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions	314mm × 104mm × 292.7mm (12.36″ × 4.09″ × 11.52″)
Weight	2kg (4.41lb)
Smart Functions Range
Lens (focal length)	25mm
VCA range (Vehicles)	750m
VCA range (humans)	500m
Temperature measurement (Object:2*2m)	585m
Temperature measurement (Object:1*1m)	295m
Fire Detection (Object:2× 2 m)	1470m
Fire Detection (Object:1× 1 m)	735m
Wide Range Coverage
Lens (focal length)	25mm
Detection range (Vehicles)	2255m
Detection range (Humans)	735m
Recognition range (Vehicles)	564m
Recognition range (Humans)	184m
Identification range (Vehicles)	282m
Identification range (Humans)	92m
