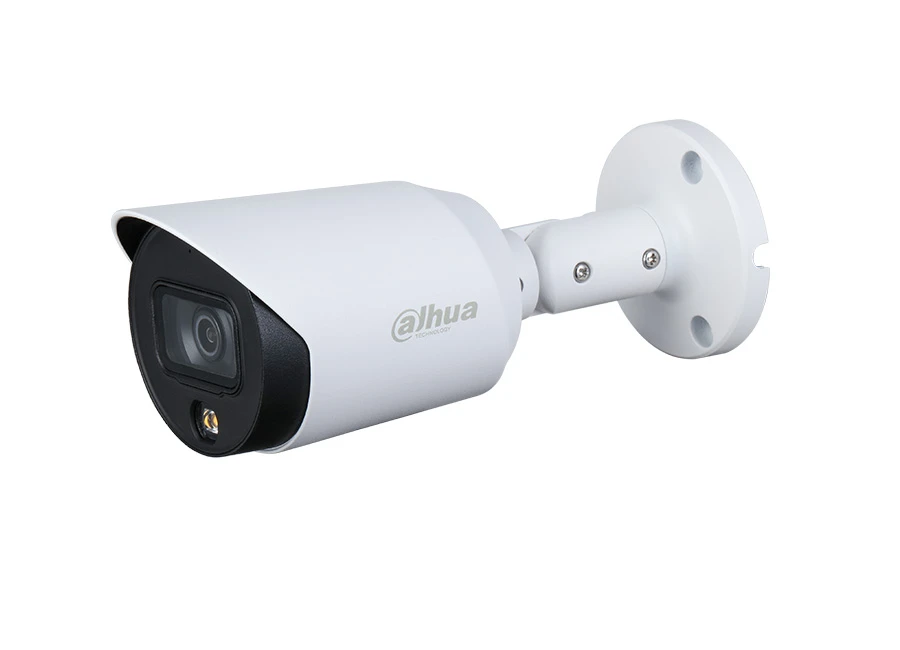

Dahua HAC HFW1239T(-A) LED, 2MP, Full-color, Starlight, Lite Serisi, Sabit Lens, Audio, IP67, 30fps, HDCVI Bullet Kamera
Camera | ||||
Image Sensor | 1/2.8 inch 2.16 Mega Pixels CMOS | |||
Effective Pixels | 1920 (H)×1080 (V), 2MP | |||
Electronic Shutter Speed | PAL:1/25s–1/100000s | |||
NTSC:1/30s–1/100000s | ||||
Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux white Light on | |||
Fill Light (White Light) Distance | Distance up to 20m (65.61ft) | |||
Fill Light On/Off Control | Auto; Manual | |||
Fill Light Number | 1 | |||
Pan/Tilt/Rotation Range | Pan: 0°–360° | |||
Tilt: 0°–78° | ||||
Rotation: 0°–360° | ||||
Lens | ||||
Lens Type | Fixed-focal | |||
Mount Type | M12 | |||
Focal Length | 3.6mm | |||
Max. Aperture | F1.6 | |||
Angle of View | 103.6°×86.9°×46.3° (diagonal×horizontal×vertical) | |||
Iris Type | Fixed iris | |||
Close Focus Distance | 1.2m (3.94ft) | |||
DORI Distance | Detect | Observe | Recognize | Identify |
55.2m (181.1ft) | 22.1m (72.5ft) | 11.0m (36.0ft) | 5.5m (18.0ft) | |
Video | ||||
Video Frame Rate | CVI: | |||
PAL: 1080@25fps, 720@25fps, 720@50fps; | ||||
NTSC: 1080@30fps, 720@30fps, 720@60fps | ||||
AHD: PAL: 1080@25fps,720@25fps; | ||||
NTSC: 1080@30fps,720@30fps | ||||
TVI: PAL: 1080@25fps,720@25fps,720@50fps; | ||||
NTSC: 1080@30fps,720@30fps,720@60fps | ||||
CVBS: PAL: 960×576H; | ||||
NTSC: 960×480H | ||||
Resolution | 1080P (1920×1080); 720P (1280×720); 960H (704× 576/704×480) | |||
BLC | BLC/HLC/WDR | |||
WDR | DWDR | |||
White Balance | Auto; Manual | |||
Gain Control | Auto; Manual | |||
Noise Reduction | 2D NR | |||
Smart Light | Yes | |||
Electronic Defog | Yes | |||
Digital Zoom | 16X | |||
Mirror | Off/On | |||
Privacy Masking | Off/On (4 area, rectangle) | |||
Certification | ||||
Certifications | CE (EN55032, EN55024, EN50130-4,EN60950-1) | |||
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | ||||
UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||||
Interface | ||||
Audio Port | Built-in mic (-A) | |||
Port | ||||
Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |||
Power | ||||
Power Supply | 12V ±30% DC | |||
Power Consumption | Max 3W (12V DC, white light on) | |||
Environment | ||||
Operating Temperature | -40°C to +60°C (-40°F to 140°F); | |||
<95% (non-condensation) | ||||
Storage Temperature | -40°C to +60°C (-40°F to 140°F); | |||
<95% (non-condensation) | ||||
Protection Grade | IP67 | |||
Structure | ||||
Casing | IMetal throughout the whole casing | |||
Dimensions | 174.5mm×70.6mm×72.3mm (6.87"×2.78"×2.85") | |||
Net Weight | 0.34Kg(0.75lb) | |||
Gross Weight | 0.45Kg(0.99lb) |
Dahua HAC HFW1239T(-A) LED HDCVI Bullet Kamera Pdf Dosyası526.15 KB
