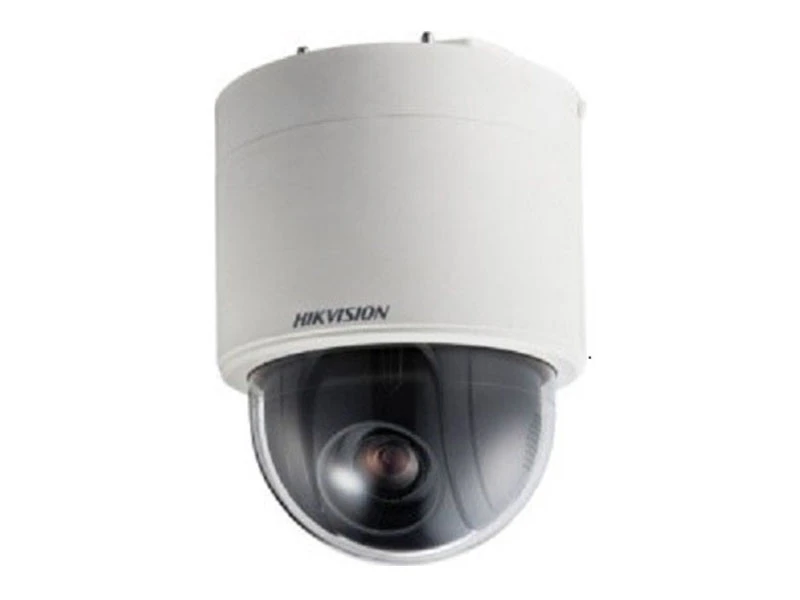

Hikvision DS 2AE5225T A3 Turbo HD Speed Dome PTZ Kamera
Özellikler
- 1/2.8" HD progressive scan CMOS
- 1920 × 1080 resolution
- 25× optical zoom, 16× digital zoom
- 120 dB true WDR (Wide Dynamic Range)
- 3D intelligent positioning
- Switchable TVI/AHD/CVI/CVBS video outputs
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | Color 0.005 Lux @(F1.6, AGC ON) |
| B/W 0.001 Lux @(F1.6, AGC ON) | |
| White Balance | AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | ≥ 120 dB |
| Anti-shake | On / Off |
| Objektif Zamanı | PAL 1-1/10,000s |
| NTSC 1-1/10,000s | |
| Gündüz ve Gece | ICR |
| Dijital Yakınlaştırma | 16x |
| Privacy Mask | 8 programmable privacy masks |
| Otomatik Odak | Auto / Semi-automatic / Manual |
| Lens | |
| Odaksal Uzunluk | 4.8 mm to 120 mm, 25× Optical |
| Yakınlaştırma Hızı | Approx. 3.6 s (optical, wide to tele) |
| Field of View | Horizontal field of view 57.6° to 2.5° (wide to tele) |
| Vertical field of view 34.4° to 1.4° (wide to tele) | |
| Diagonal field of view 64.5° to 2.9° (wide to tele) | |
| Minimum Çalışma Mesafesi | 10-1500mm (Wide-Tele) |
| Aralık Açıklık | F 1.6 to F 3.5 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Hızı | Pan manual speed 0.1° to 250°/s |
| Pan preset speed 250°/s | |
| Tilt Range | -5°~90° (Auto Flip ) |
| Tilt Hızı | Tilt manual speed 0.1° to 150°/s |
| Tilt preset speed 150°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 256 |
| Devriye | 10 patrols, up to 32 presets per patrol |
| Otomatik Tur | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Support |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Pozisyonlama Gösterimi | ON/OFF |
| Alarm | |
| Alarm Girişi | 2 |
| Alarm Çıkışı | 1 |
| Input & Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| General | |
| RS-485 Protocolleri | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Language | English |
| Power Supply | 24V AC |
| Güç Tüketim | Max. 18 W |
| Çalışma Sıcaklığı / Nem oranı | -30 °C-65°C(-22°F-149°F) |
| 90% or less | |
| Protection Level | IP66 standard (outdoor dome) |
| TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Boyutlar | DS-2AE5225T-A3(C) (Indoor) Ø 156 mm ×243 mm (6.14" × 9.57") |
| DS-2AE5225T-A3(C) (In-Ceiling) Ø 156 mm ×236 mm (6.14" × 9.29") | |
| Ağırlık (yaklaşık) | 3 kg (6.61 Ib.) |
Hikvision DS 2AE5225T A3 Turbo HD Speed Dome PTZ Kamera Pdf Dosyası802.92 KB
