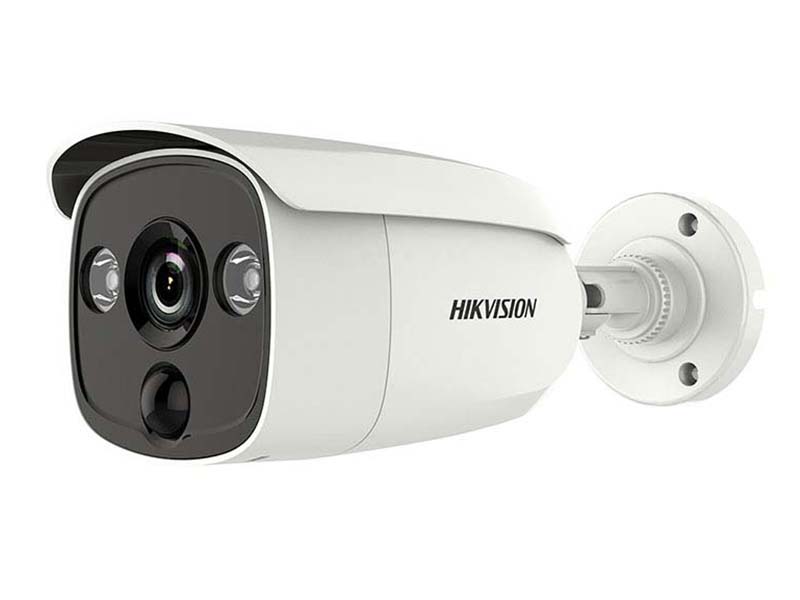

Hikvision DS 2CE12D0T PIRL AHD Bullet Kamera
Özellikler
- 2 MP high performance CMOS
- 1920 × 1080 resolution
- 2.8 mm, 3.6 mm fixed focal lens
- PIR detection, visual alarm
- EXIR 2.0, smart IR, up to 20 m IR distance
- IP67
- Up the coax (HIKVISION-C)
Teknik Özellikler
| Camera | |
| Angle Adjustment | Pan: 0°to 360°, Tilt: 0°to 180°, Rotate: 0°to 360° |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s |
| NTSC: 1/30 s to 1/50, 000 s | |
| Lens | 2.8 mm, 3.6 mm fixed focal lens |
| Lens Mount | M12 |
| Day& Night | IR cut filter |
| Horizontal Resolution | 1920 (H) × 1080 (V) |
| Synchronization | Internal Synchronization |
| Lens | |
| Horizontal Field of View | 103.5°(2.8 mm), 82.6°(3.6 mm) |
| Menu | |
| White Light | Alarm/Lighting/Off |
| D/N Mode | Auto/Color/BW (Black and White) |
| Auto White Balance | ATW/MANUAL |
| AGC | Yes |
| Language | English/Chinese |
| Function | Brightness, Contrast, Sharpness, Saturation, DNR, Mirror |
| Interface | |
| Video Out | 1 HD analog output |
| General | |
| PIR Range | Angle: 110°, Range:11 m |
| Material | Front cover: Metal |
| Main body: Plastic | |
| Bracket: Metal | |
| Ingress Protection | IP67 |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±25% |
| IR Range | Up to 20m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimension | 88.6 mm × 81.3 mm × 224.7 mm (3.49" × 3.20" × 8.85" ) |
| Weight | Approx. 430 g (0.95 lb.) |
Hikvision DS 2CE12D0T PIRL AHD Bullet Kamera Pdf Dosyası925.16 KB
