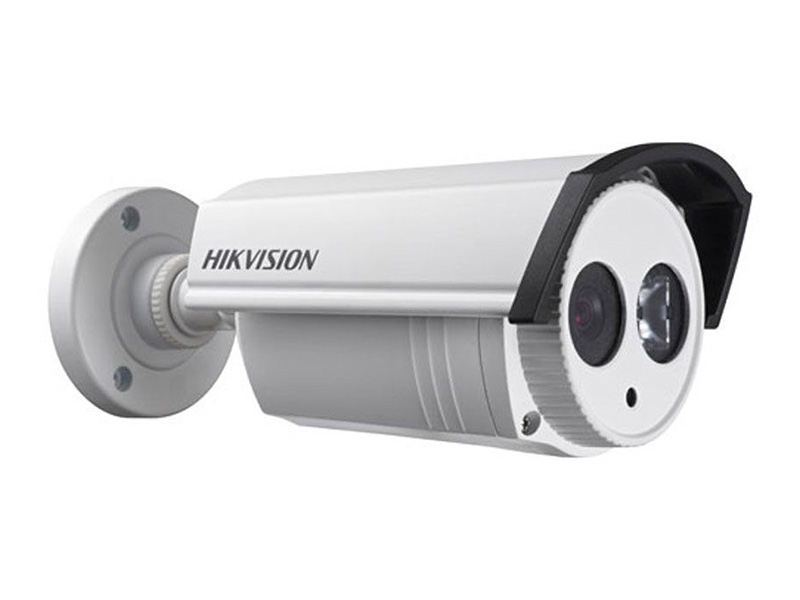

Hikvision DS 2CE16C5T IT3 AHD Bullet Kamera
Hikvision DS 2CE16C5T IT3, 1.27MP, Day/Night, Smart IR, 3D DNR, IP66, IR, DWDR, AHD Bullet Kamera
info_outline
TOPTAN ALIM VE PROJE İNDİRİMİ İÇİN LÜTFEN TEKLİF ALIN
Hikvision DS 2CE16C5T IT3 AHD Bullet Kamera
Özellikler
- 1.27 Megapixel high-performance CMOS
- Analog HD output, up to 720P resolution
- Low illumination
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- EXIR technology, up to 20m/40m IR distance
- IP66 weatherproof
- Up the Coax(HIKVISION-C, Pelco-C Protocol)
Teknik Özellikler
| Camera | |
| Image Sensor | 1.27MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1305(H)x977(V) |
| Min. Illumination | 0.001 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 3.6mm (2.8mm, 6mm, 8mm optional) |
| Angle of View: 74.6°(3.6mm), 92.6°(2.8mm), 49°(6mm), 34.5°(8mm) | |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 720p@25fps/720p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Video Output | 1Vp-p Composite Output (75Ω/BNC) |
| CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| Menu | |
| Automatic Exposure | Globe AE/DWDR |
| Auto Gain | Low/Middle/High/Off |
| D/N Mode | Color/ BW/ EXT |
| Auto White Balance | Auto / Manual |
| Private Mask | On/Off, maximum 8 zones |
| Motion Detection | On/Off, maximum 4 zones |
| AGC | Support |
| Language | English/Chinese |
| Function | Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom, Mirror |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4W |
| Weather Proof | IP66 |
| IR Range | Up to 20m |
| Communication | Up the coax |
| Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) | |
| Dimension | 105×104.8×263.1mm(4.13” ×4.13” ×10.36”) |
| Weight | 950 g |
Hikvision DS 2CE16C5T IT3 AHD Bullet Kamera Pdf Dosyası676.49 KB
Hikvision DS 2CE16C5T IT3 AHD Bullet Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası5.26 MB
